The ADA4938-1ACPZ is a low-noise, ultra-low distortion, high-speed differential amplifier. It is ideal for driving high-performance ADCs with a resolution of up to 16 bits, DC to 27 MHz, or up to 12 bits, DC to 74 MHz.

The ADA4938-1ACPZ's output common-mode voltage can be adjusted over a wide range, enabling it to match the ADC's input. The internal common-mode feedback loop also provides excellent output balance and suppresses even-order harmonic distortion products.

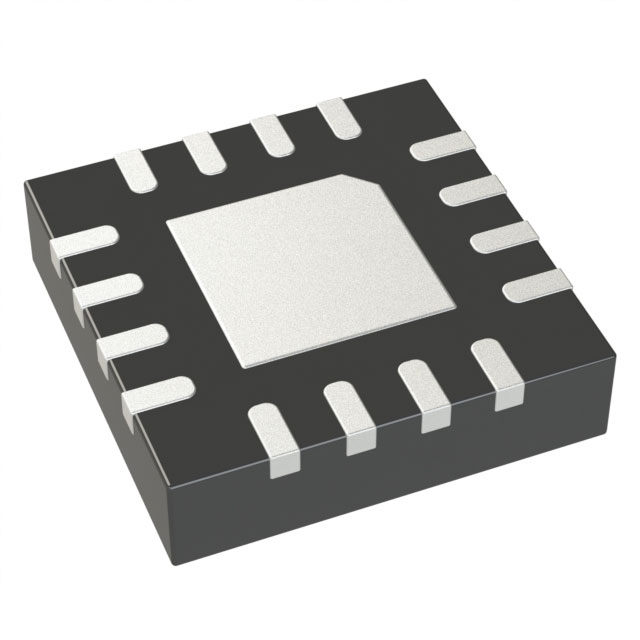

The ADA4938-1ACPZ (single-channel amplifier) is housed in a 3 mm × 3 mm, 16-pin lead-free LFCSP package. The pin layout is optimised to facilitate PCB layout and minimise distortion. The ADA4938-1ACPZ device is rated for operation over the industrial temperature range of −40°C to +85°C.

The ADA4938-1ACPZ is suitable for a variety of high-performance applications, including:

ADC drivers

Single-ended to differential converters

Intermediate frequency and baseband gain modules

Differential buffers

Line drivers

Key features:

1. Low distortion

Harmonic distortion:

At 10 MHz, the second harmonic (HD2) is -106 dBc, and the third harmonic (HD3) is -109 dBc.

At 50 MHz, both the second harmonic (HD2) and third harmonic (HD3) are -82 dBc.

2. Low Noise

Input voltage noise: 2.6 nV/√Hz.

3. High-Speed Performance

Bandwidth:

-3 dB bandwidth: 1000 MHz (gain = +1).

0.1 dB gain flatness: 150 MHz.

Slew rate: 4700 V/μs.

Fast overdrive recovery time: 4 ns.

4. Offset Voltage

Typical value: 1 mV.

5. Flexible Gain Configuration

External adjustable gain: supports differential-to-differential and single-ended-to-differential operation.

Adjustable output common-mode voltage: suitable for various signal processing requirements.

6. Wide Power Supply Voltage Range

Operating voltage: +5V to ±5V.
