The STGD19N40LZ features state-of-the-art PowerMESH™ technology. A Zener diode between the gate collector and gate emitter provides overvoltage protection. The device also features low on-state voltage drop and low threshold drive for automotive ignition systems.

Product Attributes

Voltage - Collector Breakdown (Max): 390 V

Current - Collector (Ic) (max): 25 A

Current - collector pulse (Icm): 40 A

Vce(on) at varying Vge, Ic (max): 1.5V @ 4.5V, 10A

Power - max: 125 W

Switching Energy: -

Input Type: Logic

Gate Charge: 17 nC

Td (On/Off) Value at 25°C: 650ns/13.5µs

Test Conditions: 300V, 10A, 1 kOhm, 5V

Operating Temperature: -55°C ~ 175°C (TJ)

Mounting Type: Surface Mount

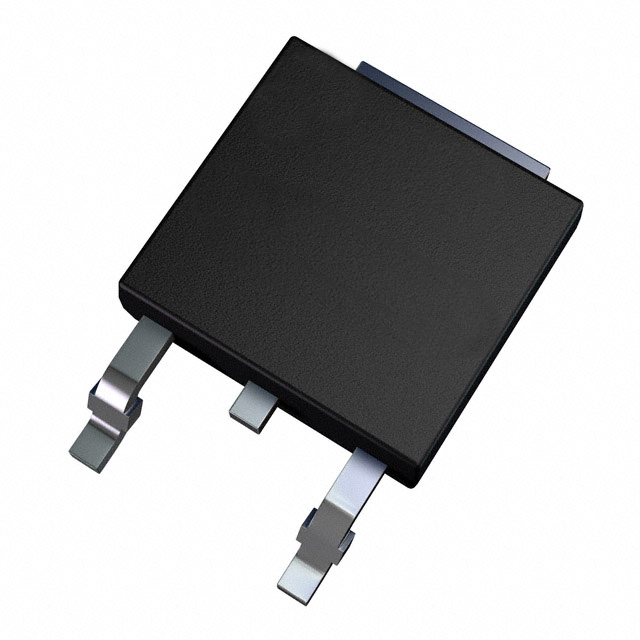

Package/Housing: TO-252-3, DPak (2 Leads + Tab), SC-63

Supplier Device Package: DPAK

Applications

• Pencil coil electronic ignition drivers
