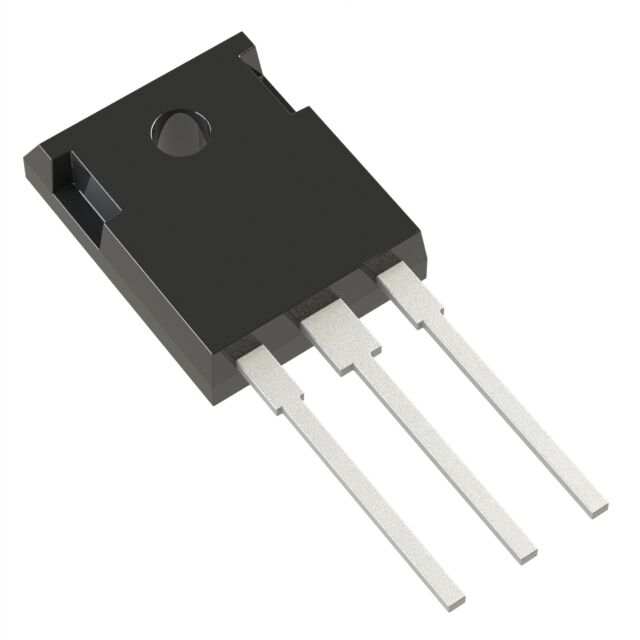

IXYH80N90C3: 900V, 165A, High Speed IGBT Transistor for 20-50 kHz Switching, TO-247-3

Product Details:

Model: IXYH80N90C3

Package: TO-247-3

Type: IGBT Transistor

IXYH80N90C3 Product Attributes:

Series: GenX3™, XPT™

Voltage - Collector Breakdown (max): 900 V

Current - Collector (Ic) (max): 165 A

Current - Collector Pulses (Icm): 360 A

Vce(on) (max) with varying Vge, Ic: 2.7V @ 15V, 80A

Power - max: 830 W

Switching Energy: 4.3mJ (on), 1.9mJ (off)

Input Type: Standard

Gate Charge: 145 nC

Td (on/off) Value at 25°C: 34ns/90ns

Test Conditions: 450V, 80A, 2 Ohm, 15V

Operating Temperature: -55°C ~ 175°C (TJ)

Mounting Type: Through Hole

Package/Housing: TO-247-3

Supplier Device Package: TO-247 (IXTH)
