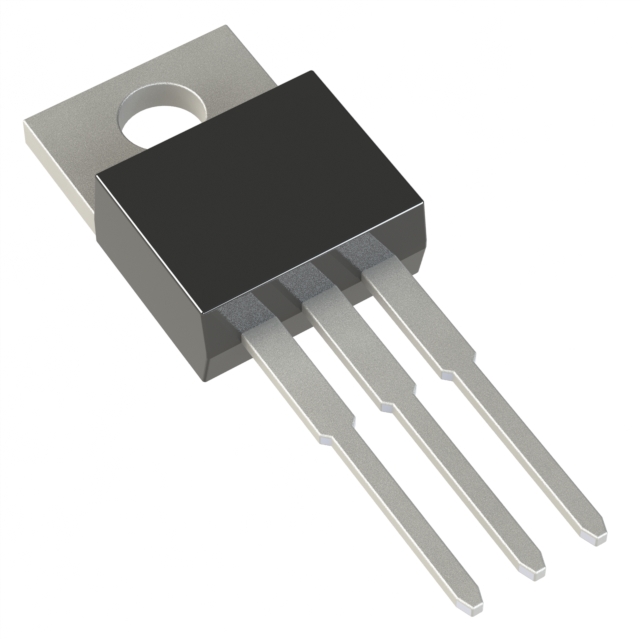

IXYP50N65C3: 650V, Auroral Transmission IGBT Transistor for 20-60kHz Switching, TO-220-3

IXYP50N65C3 Specifications:

Product Category: Insulated Gate Bipolar Transistor (IGBT)

Technology: Si

Package / Case: TO-220-3

Mounting Style: Through Hole

Configuration: Single

Maximum Collector-Emitter Voltage VCEO: 650 V

Collector-Emitter Saturation voltage: 2.1 V

Gate/emitter max. voltage: - 20 V, 20 V

Continuous collector current at 25 C: 132 A

Pd-power dissipation: 600 W

Min. operating temperature: - 55 °C

Max. operating temperature: + 175 °C

Max. continuous collector current Ic: 130 A

Gate-emitter leakage current: 100 nA

IXYP50N65C3 Features:

Optimised for 20-60kHz switching

Square RBSOA

Avalanche rating

Short-circuit capability

High power density

Extremely rugged

Low gate drive requirements

IXYP50N65C3 Applications:

Power Inverters

UPS

Motor Drives

SMPS

PFC Circuits

Battery Chargers

Welders

Lamp Ballasts

High Frequency Power Inverters
