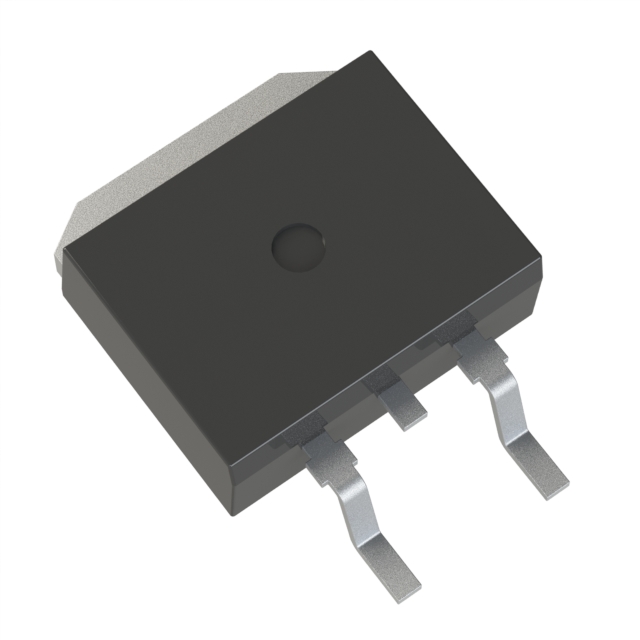

The FGB5056G2-F085 is a 560V N-channel ignition IGBT for PTC heaters and high current system applications. This device is produced by (onsemi) and has the following specifications:

IGBT type: -

Voltage - Emitter breakdown (maximum value) : 560 V

Current - Collector (Ic) (maximum value) : 80 A

Vce(on) (maximum value) at different Vge and Ic: 2.1V @ 10V, 50A

Power - Maximum: 300 W

Switching energy: -

Input type: Logic

Gate charge: 39 nC

Td (on/off) value at 25°C: -

Test conditions: -

Reverse recovery time (trr) : 7 µs

Operating temperature: -55°C to 175°C (TJ)

Grade: Automotive grade

Qualification: AEC-Q101

Installation type: Surface mount type

Package/Shell: D2PAK

Target application

• PTC heater circuit

• High current system

• Ignition system
