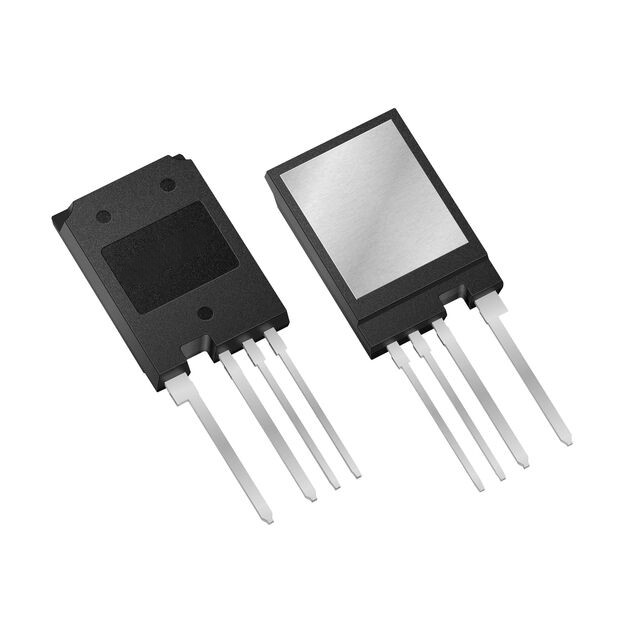

The FGY4L100T120SWD features novel field-stopped Gen 7 IGBT technology and Gen 7 diodes in a TO247 4-lead package for optimal performance with low switching and conduction losses for efficient operation in a wide variety of applications such as solar inverters, UPS and ESS.

FGY4L100T120SWD Specifications:

Product Category: Insulated Gate Bipolar Transistor (IGBT)

Technology: Si

Package/Case: TO-247-4

Mounting Style: Through Hole

Configuration: Single

Maximum Collector-Emitter Voltage VCEO: 1.2 kV

Collector-Emitter Saturation Voltage: 1.2 kV Collector -Emitter saturation voltage: 1.7 V

Gate/emitter max. voltage: 20 V

Continuous collector current at 25 C: 200 A

Pd-power dissipation: 1.071 kW

Min. operating temperature: - 55 °C

Max. operating temperature: + 175 °C

FGY4L100T120SWD Features:

Maximum junction temperature TJ = 175 °C

Positive temperature coefficient

High current capability

Smooth optimised switching

Low switching losses

FGY4L100T120SWD Applications:

Solar inverters

UPS

Energy storage systems
