The STGB25N36LZAG uses state-of-the-art PowerMESH technology optimised for driving coils in the harsh environments of automotive ignition systems. The device features extremely low on-state voltage and high SCIS energy capability over a wide operating temperature range. In addition, an ESD protected logic level gate input and integrated gate resistor means that no external protection circuitry is required.

Product Attributes

IGBT Types: - Voltage

Voltage - Collector Breakdown (max): 350 V

Current - Collector (Ic) (max): 25 A

Current - Collector pulse (Icm): 50 A

Vce(on) at varying Vge, Ic (max): 1.25V @ 4V, 6A

Power - max: 150 W

Switching Energy: -

Input Type: Logic

Gate Charge: 25.7 nC

Td (on/off) value at 25°C: 1.1µs/7.4µs

Test Conditions: -

Operating Temperature: -55°C ~ 175°C (TJ)

Mounting Type: Surface Mount

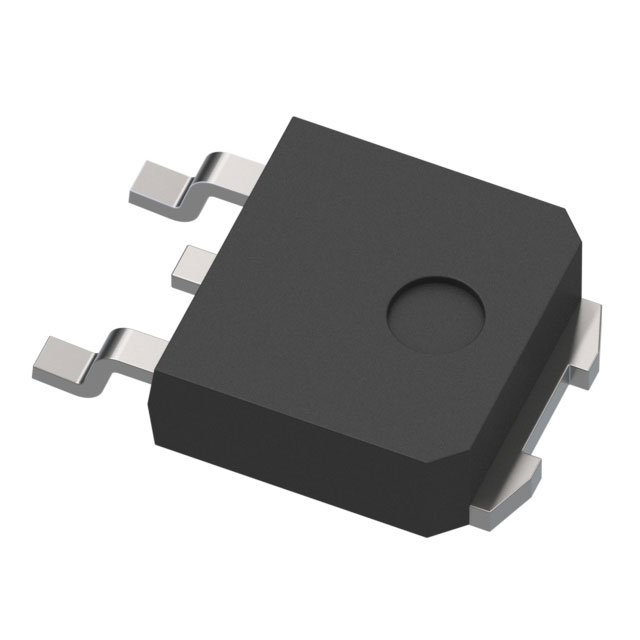

Package/Housing: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Supplier Device Package: D²PAK (TO-263)

Applications

• Automotive Ignition Coil Driver Circuits
