STGB10NB40LZT4 uses the latest high-voltage technology based on a patented ribbon layout STMicroelectronics uses the latest high-voltage technology based on a patented ribbon layout to design an advanced IGBT family, PowerMESH performance. The built-in collector zener shows very accurate active clamping, while the gate-emitter zener gate-emitter zener provides ESD protection.

Product Attributes

Voltage - Collector Breakdown (max): 440 V

Current - Collector (Ic) (max): 20 A

Current - Collector Pulse (Icm): 40 A

Vce(on) at varying Vge, Ic (max): 1.8V @ 4.5V, 10A

Power - Max: 150 W

Switching Energy: 2.4mJ (on), 5mJ (off)

Input Type: Standard

Gate Charge: 28 nC

Td (on/off) value at 25°C: 1.3µs/8µs

Test Conditions: 328V, 10A, 1 kOhm, 5V

Operating Temperature: -55°C ~ 175°C (TJ)

Mounting Type: Surface Mount

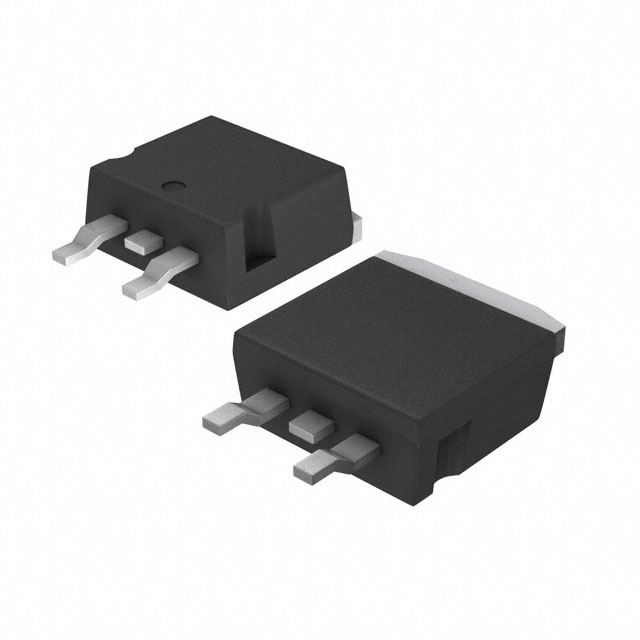

Package/Housing: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Supplier Device Package: D2PAK

Applications

• Switching Applications
