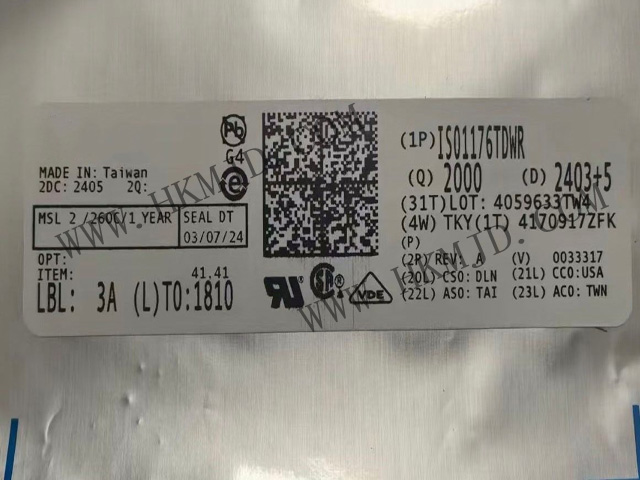

ISO1176TDWR is a digital isolated RS422/RS485 transceiver in a 16-SOIC (7.5mm wide) package, supporting 40Mbps high-speed communication and providing 2500Vrms electrical isolation, compliant with the ISO 11898 standard.

ISO1176TDWR Features

• Data rate: Up to 40 Mbps, compatible with Profibus-DP protocol

• Isolation rating: 2500 V (UL 1577, 1 min)

• Common-mode transient immunity: ≥ 50 kV/μs (typical)

• Integrated transformer driver: External small transformer can generate isolated secondary power supply, efficiency > 60% (100 mA load)

• Fault protection receiver: Supports bus open-circuit, short-circuit, and idle state detection

• Differential output: 2.1 V (54 Ω load)

• Low bus capacitance: ≤ 10 pF, reducing node load

• Wide temperature range: -40 °C to +85 °C

• Package: 16-SOIC DW, 7.5 mm × 10.3 mm, 1.27 mm pin pitch

ISO1176TDWR Applications

• Profibus®

• Factory automation

• Networked sensors

• Motor/motion control

• HVAC and building automation networks

• Networked safety stations
