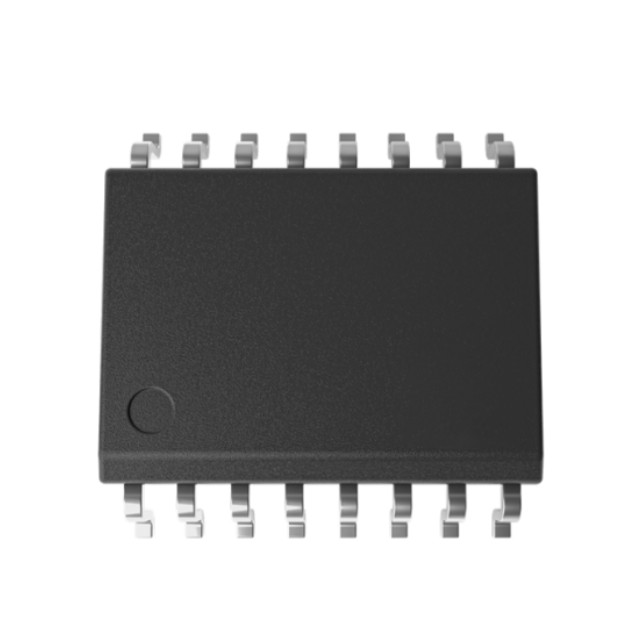

NSIP8921W1-DSWR: Dual-Channel Digital Isolator with Integrated Isolated DC-DC Converter

Overview:

The NSIP8921W1-DSWR is a dual-channel digital isolator featuring an integrated isolated DC-DC power supply. The isolated DC-DC power supply delivers up to 500mW of output power on an on-chip transformer. The feedback PWM signal is transmitted to the primary side via the digital isolator, which employs NOVOSENSE capacitive isolation technology.

The NSIP8921W1-DSWR achieves data rates up to 150Mbps with common-mode transient immunity (CMTI) up to 150kV/μs. It offers 5V to 5V, 5V to 3.3V, and 3.3V to 3.3V conversion modes, with output voltage selectable via the SEL pin.

NSIP8921W1-DSWR Product Features

Maximum insulation voltage: 4500Vrms

Supply voltage: 3.3V to 5.5V

5V to 5V, 5V to 3.3V conversion modes supporting 100mA load current

Overcurrent and over-temperature protection

Data rate: DC to 150Mbps

High CMTI: 150kV/μs

Propagation delay: <15ns

High system-level EMC performance: Enhanced system-level ESD, EFT, and surge immunity

Operating temperature: -40°C to 125°C

NSIP8921W1-DSWR Application Scenarios

Industrial automation systems

Isolated SPI, RS232, RS485

General-purpose multi-channel isolation
