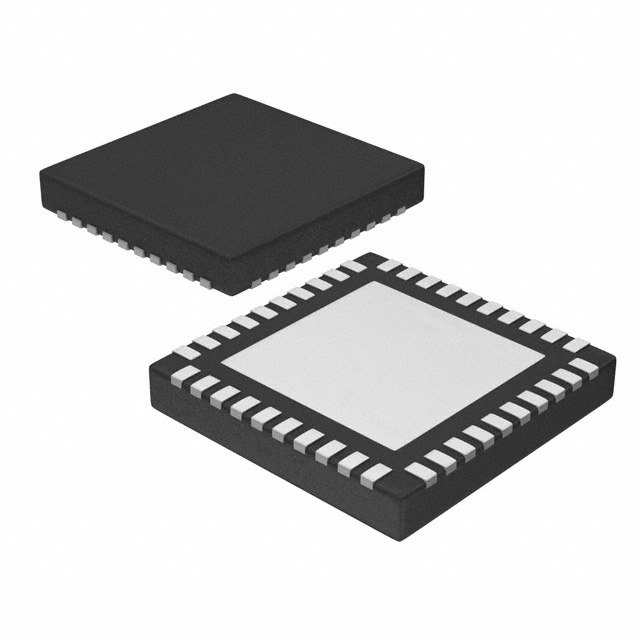

LMX1205RHAR high frequency capability, extremely low jitter and programmable clock input and output delay of this device, makes a great approach to clock high precision, high-frequency data converters without degradation of signal-to-noise ratio. Each of the four high frequency clock outputs and additional LOGICLK outputs with larger divider range, is paired with a SYSREF output clock signal. The SYSREF signal for JESD204B/C interfaces can either be internally generated or passed in as an input and re-clocked to the device clocks. The noiseless delay adjustment at input path of the high frequency clock input and individual clock output paths insures low skew clocks in multi-channel system. For data converter clocking application, having the jitter of the clock less than the aperture jitter of the data converter is important. In applications where more than four data converters need to be clocked, a variety of cascading architectures can be developed using multiple devices to distribute all the high frequency clocks and SYSREF signals required. This device, combined with an ultra-low noise reference clock source, is an exemplary choice for clocking data converters, especially when sampling above 3GHz.

Feature Of LMX1205RHAR

Output frequency: 300MHz to 12.8GHz

Noiseless adjustable input delay up to 60ps with 1.1ps resolution

Individual adjustable output delays up to 55ps with 0.9ps resolution

Ultra-low noise

Noise floor: –159dBc/Hz at 6GHz output

Additive jitter (DC to fCLK): 36fs

Additive jitter (100Hz to 100MHz): 10fs

Four high-frequency clocks with corresponding SYSREF outputs

Shared divide by 1 (Bypass), 2, 3, 4, 5, 6, 7, and 8

Shared programmable multiplier x2, x3, x4, x5, x6, x7 and x8

LOGICLK output with corresponding SYSREF output

On separate divide bank

1, 2, 4 pre-divider

1 (bypass), 2, …, 1023 post divider

Second logic clock option with additional divider 1, 2, 4 & 8

Six programmable output power levels

Synchronized SYSREF clock outputs

508 delay step adjustments of less than 2.5ps at 12.8GHz

Generator, repeater and repeater retime modes

Windowing feature for SYSREFREQ pins to optimize timing

SYNC feature to all divides and multiple devices

Operating voltage: 2.5V

Operating temperature: –40ºC to +85ºC

Applications Of LMX1205RHAR

• Test & Measurement:

– Oscilloscope

– Wireless equipment testers

– Wideband digitizers

• Aerospace & Defense:

– Radar

– Electronic warfare

– Seeker Front end

– Munitions

– Phase array antenna / Beam forming

• General Purpose:

– Data converter clocking

– Clock buffer distribution / division
