The ADF5612BCCZ is a microwave wideband frequency synthesizer with integrated VCO ‌, intended for a wide range of RF and microwave applications. Its main features include:

The output frequency range of RFOUT is from 7300MHz to 8500MHz

The frequency range of PDIV_OUT and NDIV_OUT: 57MHz to 8500MHz

Decimal n-frequency synthesizer and integer n-frequency synthesizer modes

Typical PFD spurious power: < -105 DBC

RMS jitter under the integrated bandwidth of 1kHz to 100MHz: <40 femtoseconds

Normalized in-band phase background noise (FOM

Integer mode: -232 DBC /Hz

Score mode: -229 DBC /Hz

Maintain the locking frequency within the range of -40 °C to +105°C (you can leave after locking)

Low-open-loop VCO phase noise

The typical value is -115 DBC /Hz at a 100kHz offset (7.3GHz for RFOUT).

RFOUT power (typical value) : 6dBm

Programmable 1, 2, 4, 8, 16, 32, 64 or 128 frequency division outputs

Programmable output power level

Typical power consumption: 1 W

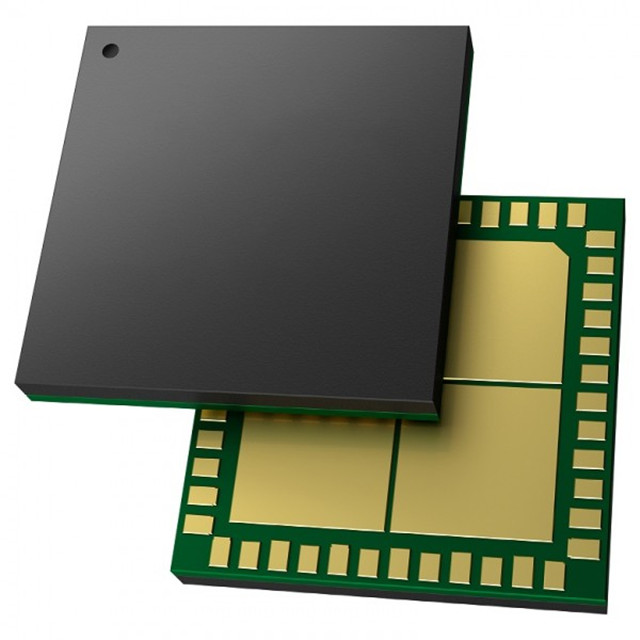

48-terminal, 7mm × 7mm LGA package: 49mm ²

The ADF5612BCCZ features an integrated VCO with a base frequency ranging from 3650MHz to 7300MHz. These frequencies are doubled internally and routed to the RFOUT pin. The additional differential output allows the doubled VCO frequency to be divided by 1, 2, 4, 8, 16, 32, 64 or 128, thereby enabling users to generate RF output frequencies as low as 57MHz.

Application field

The ADF5612BCCZ is widely applied in multiple fields, including:

Military and defense

Test equipment

Clock generation

Wireless infrastructure

Satellites and Very Small Aperture Terminals (VSAT)

Microwave radio
