Trade Name:Phase-Locked Loop
Brand:ADI
Particular Year:25+
Package:QFN-24
Delivery Date:New and Original
Stock: 3000pcs

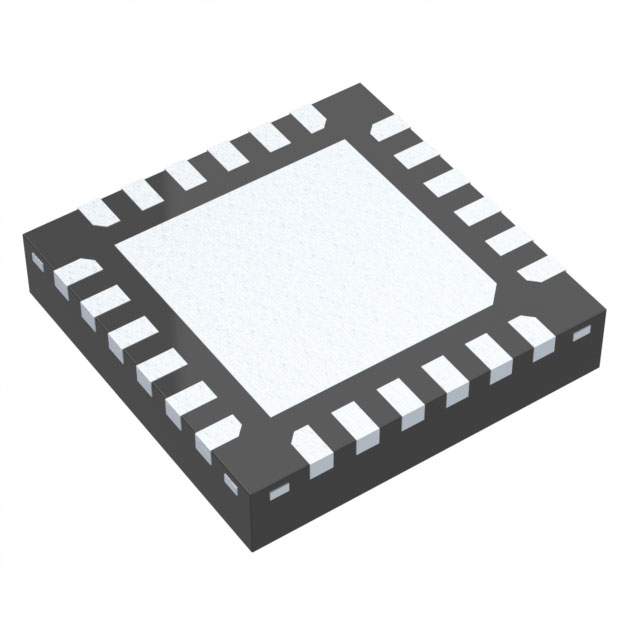

HMC535LP4E: Phase-Locked Loop with Integrated VCO - 14.7GHz - 15.4GHz, Phase-Locked Oscillator
Basic Information:
Model No.: HMC535LP4E
Package: QFN-24
Type: Phase-Locked Loop -Phase-Locked Oscillator
HMC535LP4E Product Attributes:
PLL: Yes
Input: Clock
Output: Clock
Number of Circuits: 1
Ratio - Input:Output:1:1
Differential - Input:Output:Yes/No
Frequency - Maximum: 15.4GHz
Divider/Multiplier: No/No
Voltage - Supply: 4.75V ~. 12.5V
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Package/Enclosure: 24-VFQFN Unpadded
Vendor Device Package: 24-QFN (4x4)
HMC535LP4E Product Characteristics:
Pout: +9 dBm
Phase Noise: Typical -110 dBc/Hz (100 KHz)
Single Supply:
+5V @ 340 mA
12V @ 28 mA
QFN pinless SMT package, 16 mm²
HMC535LP4E Applications:
VSAT radios
Point-to-point and point-to-multipoint radios
Test equipment and industrial control
