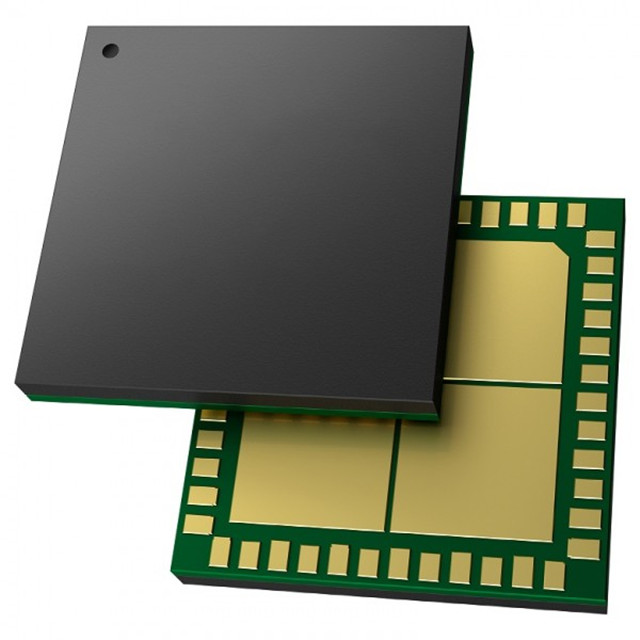

When the ADF5612CCCZ device is used in combination with an external loop filter and an external reference voltage source, it can achieve a fractional N frequency division or integer N frequency division phase-locked loop (PLL) frequency synthesizer. The broadband microwave voltage-controlled oscillator (VCO) design enables frequency operation ranging from 7300MHz to 8500MHz on a single RF output. A series of frequency dividers with differential frequency output allow operation within the range of 57MHz to 8500MHz. The analog and digital power supply range of the PLL circuit is from 3.15V to 3.45V, and the VCO power supply range is between 4.75V and 5.25V.

The main characteristics of this device include:

The output frequency range of RFOUT is from 7300MHz to 8500MHz

The frequency range of PDIV_OUT and NDIV_OUT: 57MHz to 8500MHz

Decimal n-frequency synthesizer and integer n-frequency synthesizer modes

Typical PFD spurious power: < -105 DBC

RMS jitter under the integrated bandwidth of 1kHz to 100MHz: <40 femtoseconds

Normalized in-band phase background noise (FOM

Integer mode: -232 DBC /Hz

Score mode: -229 DBC /Hz

Maintain the locking frequency within the range of -40 °C to +105°C (you can leave after locking)

Low-open-loop VCO phase noise

The typical value is -115 DBC /Hz at a 100kHz offset (7.3GHz for RFOUT).

RFOUT power (typical value) : 6dBm

Programmable 1, 2, 4, 8, 16, 32, 64 or 128 frequency division outputs

Programmable output power level

Typical power consumption: 1 watt

48-terminal, 7mm × 7mm LGA package: 49mm ²

In addition, the ADF5612CCCZ is suitable for a variety of application scenarios, including:

Military and defense

Test equipment

Clock generation

Wireless infrastructure

Satellites and Very Small Aperture Terminals (VSAT)

Microwave radio
