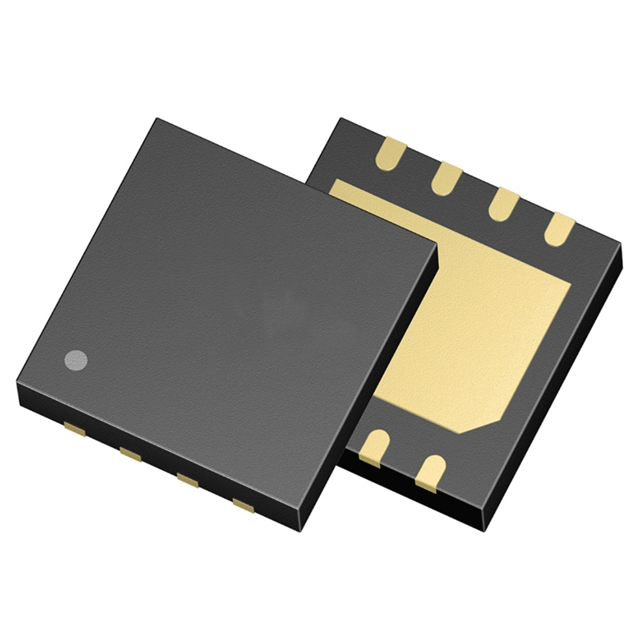

For picture reference, please see the specifications
< >

Commodity Model:2EDF5215G

Trade Name:Isolated Gate Drivers

Brand:INFINEON

Particular Year:25+

Package:VDSON-8

Delivery Date:New and original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
2EDF5215G
Package
VDSON-8
Describe
250 V, 5 A/9 A isolated gate driver IC for the high-voltage side and the low-voltage side

Product Description

The 2EDF5215G is a fast and reliable high-and low-side isolated gate driver designed for high-performance applications ‌. It features precise and stable timing functions as well as high current output capabilities, making it particularly suitable for power systems that require rapid switching. The 2EDF5215G output is compatible with both low and high side MOSFETs, with strong output phase and low inter-component offset, fast signal propagation, which makes the product perform well in high-speed switching systems ‌.


The 2EDF5215G has the following main features:

250V high-voltage side and low-voltage side gate drivers

Due to current isolation, -250 V negative HS transient immunity

Due to CT technology, 100 V/ns dV/dt robustness

5A / 9A pulling/filling capacity

• 9 ns /-5 ns delay accuracy

Maximum delay matching of 4 ns

The 1.2V output clamping threshold under UVLO conditions

A fast startup time of less than 2 μs during the bootloader

• Adopt VDSSON-8 (4 mm x 4 mm) package

These features make the 2EDF5215G excel in applications that require high switching frequencies and precise timing control, suitable for a wide range of industrial, consumer and automotive applications ‌.


Associated Products

Model

Brand

Package

Quantity

Describe

2EDF5215F

INFINEON

PG-DSO-8

2500

250 V, 5 A/9 A isolated gate driver IC for the high-voltage side and the low-voltage side

1EDI30I12MF

INFINEON

PG-DSO-8

3000

1200 V, 6.2 A single-channel isolated gate driver with Miller clamp and short circuit clamping

1EDB8275F

INFINEON

PG-DSO-8

2500

3 kVrms single-channel isolated gate driver IC

1EDB7275F

INFINEON

PG-DSO-8

2500

3 kVrms single-channel isolated gate driver IC

1ED3145MC12H

INFINEON

PG-LDSO-8

2500

EiceDRIVER™ X3 Compact single-channel isolated gate driver IC

1ED3144MC12H

INFINEON

PG-LDSO-8

3000

EiceDRIVER™ X3 Compact single-channel isolated gate driver IC

1ED3143MC12H

INFINEON

PG-LDSO-8

2500

EiceDRIVER™ X3 Compact single-channel isolated gate driver IC

1ED3142MC12H

INFINEON

PG-LDSO-8

2500

EiceDRIVER™ X3 Compact single-channel isolated gate driver IC

1ED3141MC12H

INFINEON

PG-LDSO-8

2500

EiceDRIVER™ X3 Compact single-channel isolated gate driver IC

ADUM6132ARWZ

ADI

SOIC-16

3000

Isolated half-bridge driver with integrated isolated high-end power supply
