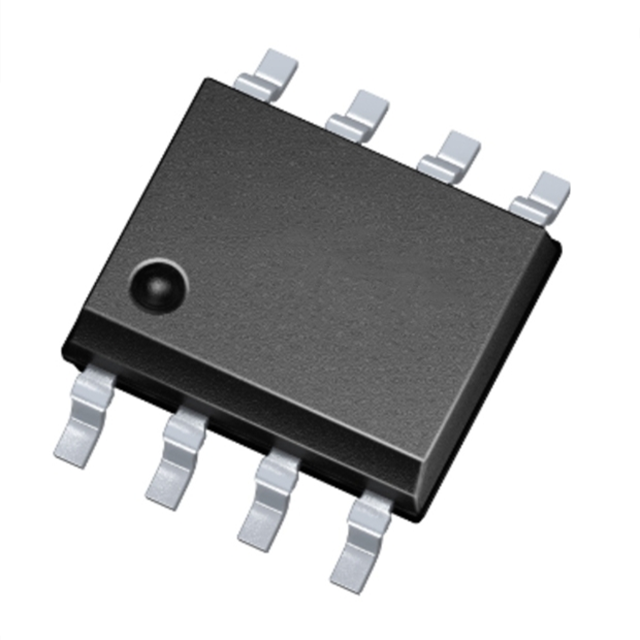

For picture reference, please see the specifications
< >

Commodity Model:1EDI30I12MF

Trade Name:Isolated Gate Drivers

Brand:INFINEON

Particular Year:25+

Package:PG-DSO-8

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
1EDI30I12MF
Package
PG-DSO-8
Describe
1200 V, 6.2 A single-channel isolated gate driver with Miller clamp and short circuit clamping

Product Description

The 1EDI30I12MF is a single-channel isolated gate driver for 1200V IGBT, SiC, and Si MOSFET devices ‌. It belongs to the EiceDRIVER™ 1ED Compact 150mil family and has the following main features:

EiceDRIVER™ Compact single-channel isolated gate driver series

Applicable to 600 V, 650 V, 1200 V IGBTs, SiC and Si MOSFETs

Current isolation coreless transformer gate driver

6.2A Peak output current of typical injection current and pull current

Absolute maximum output voltage of 20 V

300 ns propagation delay, 240 ns input filter

High common-mode transient immunity (CMTI) >100 kV/μs

Active Miller clamping

Short-circuit clamping and active shutdown

DSO-8 150 mil narrow-body package, with a creepage distance of 4 mm

10.5V / 12.7V undervoltage locking (UVLO) protection with hysteresis


Application scenarios

The 1EDI30I12MF is suitable for power electronics applications that require high reliability and high performance, including:

• AC and brushless DC motor drivers

High-voltage DC/DC converters and DC/AC inverters

• Application of induction heating resonance

"UPS system"

Commercial Air Conditioning (CAC)

Server and telecommunications Switching Mode power Supply (SMPS)

Solar energy


Associated Products

Model

Brand

Package

Quantity

Describe

2EDF5215G

INFINEON

VDSON-8

2500

250 V, 5 A/9 A isolated gate driver IC for the high-voltage side and the low-voltage side

2EDF5215F

INFINEON

PG-DSO-8

2500

250 V, 5 A/9 A isolated gate driver IC for the high-voltage side and the low-voltage side

1EDB8275F

INFINEON

PG-DSO-8

2500

3 kVrms single-channel isolated gate driver IC

1EDB7275F

INFINEON

PG-DSO-8

2500

3 kVrms single-channel isolated gate driver IC

1ED3145MC12H

INFINEON

PG-LDSO-8

2500

EiceDRIVER™ X3 Compact single-channel isolated gate driver IC

1ED3144MC12H

INFINEON

PG-LDSO-8

3000

EiceDRIVER™ X3 Compact single-channel isolated gate driver IC

1ED3143MC12H

INFINEON

PG-LDSO-8

2500

EiceDRIVER™ X3 Compact single-channel isolated gate driver IC

1ED3142MC12H

INFINEON

PG-LDSO-8

2500

EiceDRIVER™ X3 Compact single-channel isolated gate driver IC

1ED3141MC12H

INFINEON

PG-LDSO-8

2500

EiceDRIVER™ X3 Compact single-channel isolated gate driver IC

ADUM6132ARWZ

ADI

SOIC-16

3000

Isolated half-bridge driver with integrated isolated high-end power supply
