The 2EDF5215F is a fast, reliable two-channel, high-side isolation gate driver with accurate and stable timing and high current output. This product is specifically designed to drive low-side and high-side MOSFETs, featuring low inter-component offset and fast signal propagation. It is particularly suitable for power systems with rapid switching. Its output matches a maximum propagation delay of 4 nanoseconds, allowing the 2EDF5215F to use a lower dead time in half-bridge applications and achieve perfect synchronization in diagonal drives ‌.

The features of 2EDF5215F are as follows:

250V high-voltage side and low-voltage side gate drivers

Due to current isolation, -250 V negative HS transient immunity

Due to CT technology, 100 V/ns dV/dt robustness

5A / 9A pulling/filling capacity

• 9 ns /-5 ns delay accuracy

Maximum delay matching of 4 ns

The 1.2V output clamping threshold under UVLO conditions

A fast startup time of less than 2 μs during the bootloader

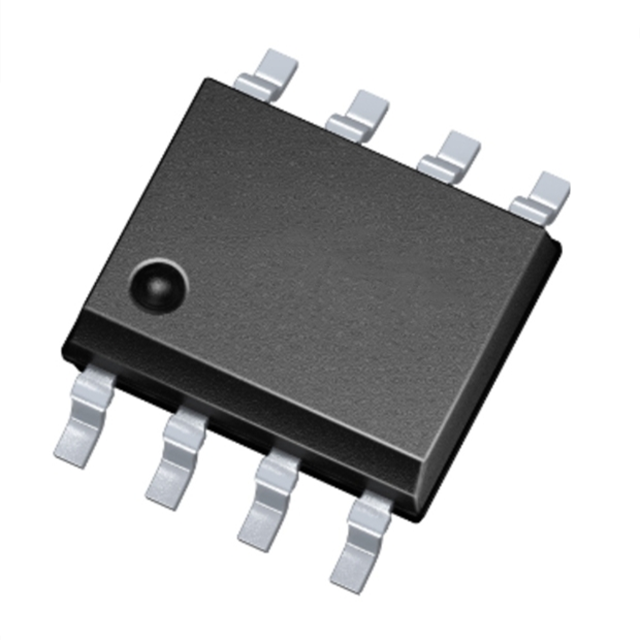

• It adopts DSO-8 (5 mm x 6 mm) package

Potential application

• Server and telecommunications DC-DC converters

• Synchronous rectification of SMPS

• Motor drivers and power tools

Low-speed electric vehicle (LSEV)

Solar optimizers and micro-inverters
