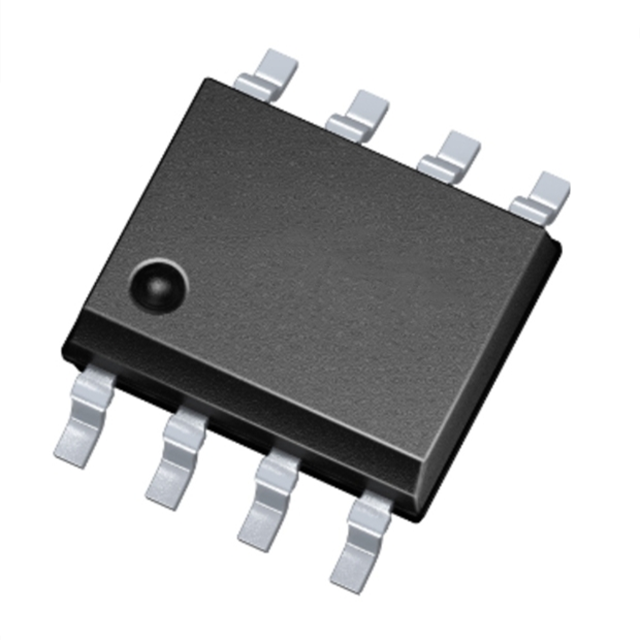

For picture reference, please see the specifications
< >

Commodity Model:1EDB8275F

Trade Name:Isolated Gate Drivers

Brand:INFINEON

Particular Year:25+

Package:PG-DSO-8

Delivery Date:New and original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
1EDB8275F
Package
PG-DSO-8
Describe
3 kVrms single-channel isolated gate driver IC

Product Description

The 1EDB8275F is a single-channel isolated gate driver belonging to the EiceDRIVER product series, featuring an input/output isolation voltage rating of 3 kVrms. The 1EDB8275F has been optimized for fast switching applications with high system-level efficiency. To support the operation of a functionally safe system, the common-mode transient immunity (CMTI) exceeds 300 V/ns, the typical output stage clamping speed is as short as 20 ns, and the output stage undervoltage lock (UVLO) is 7 V.


Product advantages

It has excellent immunity to switching noise

Hardware-based Secure Workspace Protection (SOA)

Direct protection during startup

Extremely low MOSFET switching loss

The dead zone time loss is extremely low


The features of 1EDB8275F include:

3 kVrms magneto-electric isolation

Comply with the UL 1577 certification standard

300 V/ns common-mode transient Immunity (CMTI)

Output impedance

95 Ω (typical value) source

48 Ω (typical value) drain

Propagation delay accuracy of +6/-4 ns

Output clamping speed of 20 ns (typical value)

7 V under-voltage locking (UVLO)

These features make the 1EDB8275F particularly suitable for systems that require functional safety assurance, such as server switching power supplies, telecommunications switching power supplies, electric vehicle chargers, DC/AC inverters and other applications ‌


Associated Products

Model

Brand

Package

Quantity

Describe

2EDF5215G

INFINEON

VDSON-8

2500

250 V, 5 A/9 A isolated gate driver IC for the high-voltage side and the low-voltage side

2EDF5215F

INFINEON

PG-DSO-8

2500

250 V, 5 A/9 A isolated gate driver IC for the high-voltage side and the low-voltage side

1EDI30I12MF

INFINEON

PG-DSO-8

3000

1200 V, 6.2 A single-channel isolated gate driver with Miller clamp and short circuit clamping

1EDB7275F

INFINEON

PG-DSO-8

2500

3 kVrms single-channel isolated gate driver IC

1ED3145MC12H

INFINEON

PG-LDSO-8

2500

EiceDRIVER™ X3 Compact single-channel isolated gate driver IC

1ED3144MC12H

INFINEON

PG-LDSO-8

3000

EiceDRIVER™ X3 Compact single-channel isolated gate driver IC

1ED3143MC12H

INFINEON

PG-LDSO-8

2500

EiceDRIVER™ X3 Compact single-channel isolated gate driver IC

1ED3142MC12H

INFINEON

PG-LDSO-8

2500

EiceDRIVER™ X3 Compact single-channel isolated gate driver IC

1ED3141MC12H

INFINEON

PG-LDSO-8

2500

EiceDRIVER™ X3 Compact single-channel isolated gate driver IC

ADUM6132ARWZ

ADI

SOIC-16

3000

Isolated half-bridge driver with integrated isolated high-end power supply
