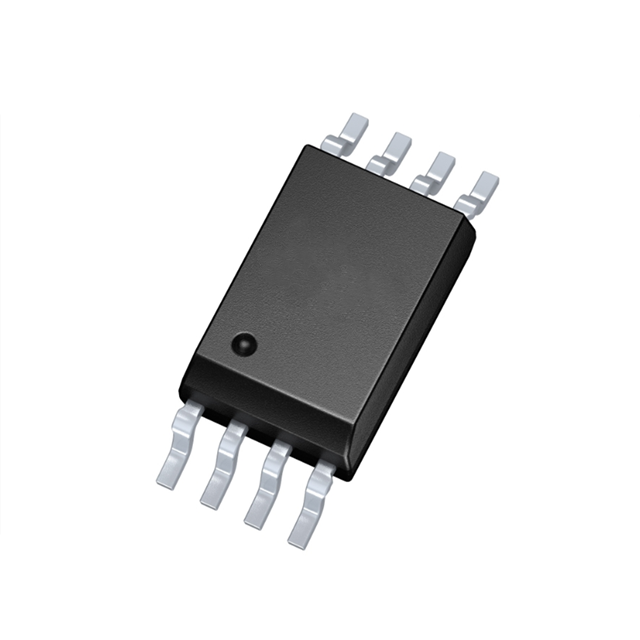

Commodity Model:1ED3144MC12H

Trade Name:Isolated Gate Drivers

Brand:INFINEON

Particular Year:25+

Package:PG-LDSO-8

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
1ED3144MC12H
Package
PG-LDSO-8
Describe
EiceDRIVER™ X3 Compact single-channel isolated gate driver IC

Product Description

The 1ED3144MC12H is a high-performance electrically isolated single-channel gate driver produced and launched by Infineon. It is designed to drive IGBTs, MOSFETs and SiC MOSFETs. The typical output current of 1ED3144MC12H is as high as 6.5A. The input logic pin operates within a wide input voltage range of 3V to 6.5V. It adopts CMOS threshold levels and supports 3.3V microcontrollers.


The 1ED3144MC12H has the following main characteristics:

Single-channel electrically isolated coreless transformer gate driver

Independent output, output UVLO reference to GND2 or adjustable output UVLO option

With 600 v / 650 v / 1200 v / 1700 v / 2300 v IGBT and Si/SiC MOSFET collocation is used

Peak output current: up to 6.5A (typical value)

40ns propagation delay, 7ns matching (offset) between parts

Absolute maximum output power supply voltage: 35 V

Extremely high (best-in-class) common-mode transient suppression (CMTI) : >300kV/µs

Active shutdown and short-circuit clamping

150mil DSO-8 and 300mil LDSO-8 packages, with CTI>600

Input power supply voltage: 3.3V and 5V

It is suitable for operation in high-temperature environments and fast-switching applications

UL 1577 certification VISO =3.0kVRMS, lasting for 1 minute (file E311313), for 1ED314xMU12F

UL 1577 certification VISO =5.7kVRMS, lasting for 1 minute (Document E311313), IEC 60747-17 (VIORM = 1767V) (plan), for 1ED314xMC12H

It complies with the industrial application standard JEDEC47/20/22

Youdaoplaceholder0 Application fields ‌ : The 1ED3144MC12H gate driver is widely used in rack-mounted power supplies, energy storage systems, electric vehicle charging, motor control and drive, photovoltaic inverters and other fields ‌.
