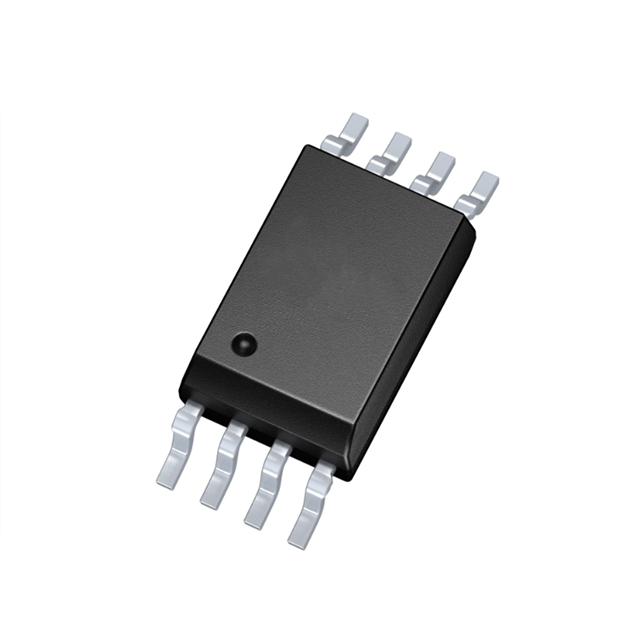

Commodity Model:1ED3143MC12H

Trade Name:Isolated Gate Drivers

Brand:INFINEON

Particular Year:25+

Package:PG-LDSO-8

Delivery Date:New and original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
1ED3143MC12H
Package
PG-LDSO-8
Describe
EiceDRIVER™ X3 Compact single-channel isolated gate driver IC

Product Description

The 1ED3143MC12H is an EiceDRIVER™ compact single-channel isolated gate driver with peak output capabilities of 6.5A sink current and 6A pull current. It is available in an 8-pin wide-body LDSO package and is suitable for IGBTs, MOSFETs, and SiC MOSFETs. The main characteristics of this device include:

Supports IGBT, silicon (Si) and silicon carbide (SiC) switches up to 2300 V

Function bias voltage: 2300 V

Coreless transformer technology with electrical isolation

Typical peak output current: up to 6.5A

Propagation delay: 40 ns

Absolute maximum output power supply voltage: 35 V

High common-mode transient immunity (CMTI) : > 300 kV/µs

Supports active shutdown and short-circuit clamping functions

Input power supply voltage: 3.3V and 5V

12.5/13.6V UVLO protection with hysteresis characteristics

Under-voltage lock (UVLO) protection function, with GND2 as the reference benchmark


Application field

The 1ED3143MC12H gate driver is suitable for high-temperature environments and high-frequency switching applications, including:

EV charging

Energy storage system

Solar inverter

Server and telecommunication Switching Mode Power Supply (SMPS)

UPS system

Ac and brushless DC motor drive

Commercial Air Conditioning (CAC

High-voltage DC-DC converter and DC-AC inverter
