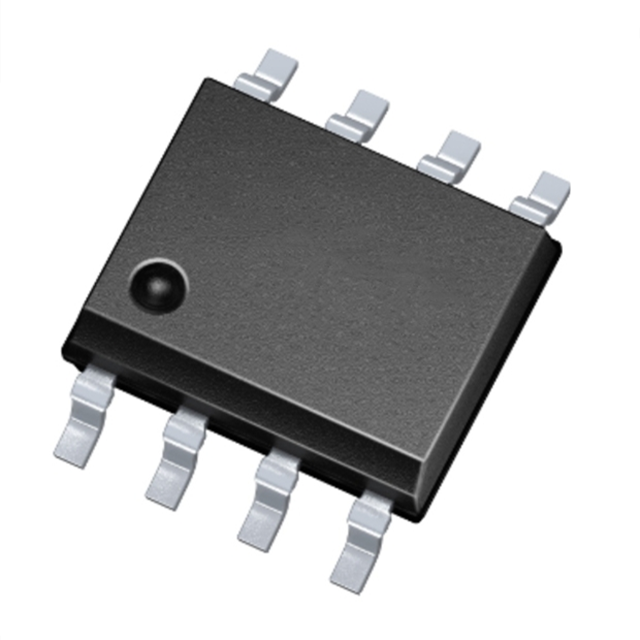

The 1ED21471S65F 650V high-side gate driver is designed to provide robust and efficient control for high-voltage power transistors. The 1ED21471S65F adopts a high-side driver architecture and supports various applications, including motor drivers, solar inverters, and industrial power supplies. Its main features include integrated bootloader diodes, fast switching capabilities, and comprehensive protection mechanisms such as under-voltage lockout (UVLO) and overcurrent protection. These features make the EiceDRIVER™ 1ED21471S65F an ideal choice for enhancing the performance and reliability of high-voltage power systems.

Basic parameters

Model: 1ED21471S65F

Driver configuration: High-end

Channel type: Single channel

Number of drives: 1

Gate type: IGBT, SiC MOSFET

Voltage - Power supply: 10V to 22V

Logic voltage - VIL, VIH: 0.8V, 2.4V

Current - peak output (input, pull) : 4A, 4A

Input type: Non-inverting

High-voltage side voltage - maximum value (autogenous) : 650 V

Rise/fall time (typical value) : 12ns, 12ns

Operating temperature: -40°C to 125°C (TJ)

Installation type: Surface mount type

Packaging/Shell: PG-DSO-8
