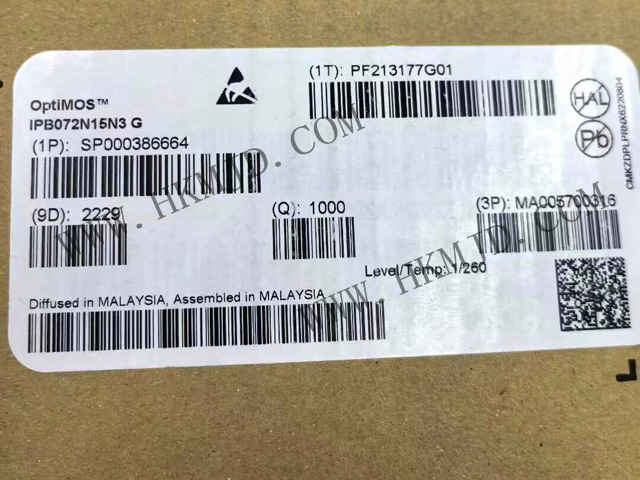

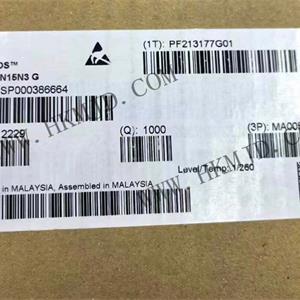

For picture reference, please see the specifications
< >

Commodity Model:IPB072N15N3G

Trade Name:N-channel Power MOSFET

Brand:INFINEON

Particular Year:22+

Package:PG-TO263-3

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
IPB072N15N3G
Package
PG-TO263-3
Describe
Surface Mount Type N-Channel 150 V 100 A (Tc) 300 W (Tc) PG-TO263-3

Product Description

IPB072N15N3G is an N-channel enhancement-mode power MOSFET launched by Infineon, belonging to the OptiMOS™3 series, packaged in a TO-263-3 (D2PAK) package, and suitable for high-frequency switching, synchronous rectification, and high-power conversion applications. This device features extremely low on-resistance and excellent switching performance, significantly improving system efficiency and reducing thermal management requirements.


Specifications

Product Model: IPB072N15N3G

Drain-Source Voltage (Vdss): 150V

Continuous Drain Current (Id): 100A

On-Resistance (RDS(on)): 7.2mΩ @ 10V, 100A

Gate Charge (Qg): 93nC

Threshold Voltage (Vgs(th)): 4V @ 270µA

Input capacitance (Ciss): 5.47nF

Maximum power dissipation (Pd): 300W

Operating temperature range: -55°C to +175°C

Package: TO-263-3 (D2PAK)


Applications

The IPB072N15N3G is suitable for a variety of high-power applications, including but not limited to:

Synchronous rectification in AC-DC switching power supplies: Enhances power conversion efficiency.

Motor control in 48V to 80V systems: Such as in home vehicles, power tools, trucks, etc.

Isolated DC-DC converters: Used in telecommunications and data communication systems.

Uninterruptible power supply (UPS): Provides efficient power backup.

Class D audio amplifiers: Enables high-power audio output.
