The ADRF6780ACPZN-CSH is a wideband microwave upconverter designed with silicon germanium (SiGe), optimized for point-to-point microwave radio design, with an operating frequency range of 5.9 GHz to 23.6 GHz. This device has the following main characteristics:

Broadband RF output frequency range: 5.9 GHz to 23.6 GHz

Two up-conversion modes

Direct frequency conversion from baseband IQ to RF

Drive from the actual IF side to variable frequency

LO input frequency range: 5.4 GHz to 14 GHz

The LO frequency multiplier can reach up to 28 GHz at most

Match 100 Ω balanced RF output, LO input and IF input

High-impedance baseband input

Sideband suppression and carrier feedthrough optimization

Variable attenuators and power detectors for Tx power control

It can be programmed through the four-wire SPI interface

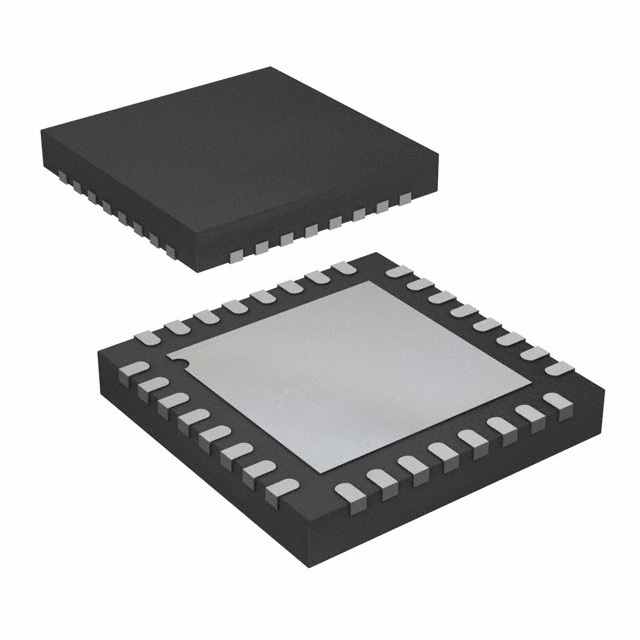

32-pin LFCSP 5 mm × 5 mm microwave package

Application scenarios

ADRF6780ACPZN-CSH is used in a variety of application scenarios, including:

Point-to-point microwave radio

Radar and electronic warfare systems

Instruments and meters, automatic test equipment (ATE)
