Product Classification

AI Processor Chip

Resistor network

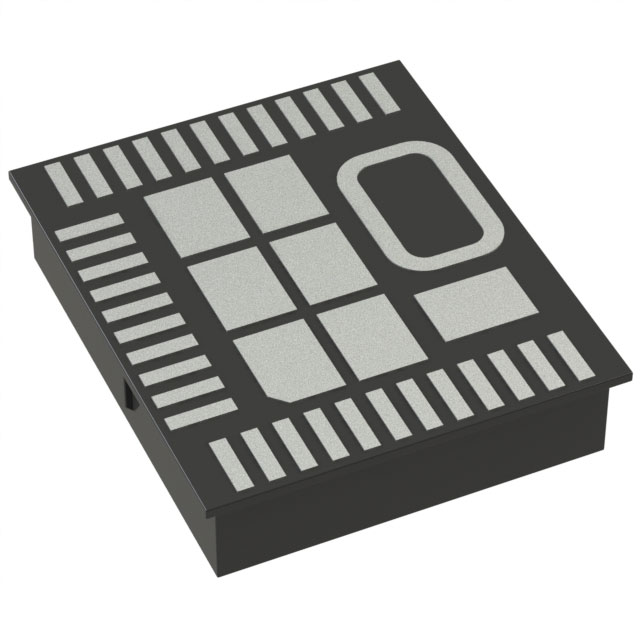

For picture reference, please see the specifications
< >

Commodity Model:ADMV7410BCEZ

Trade Name:RF Mixer

Brand:ADI

Particular Year:25+

Package:LGA-34

Delivery Date:New and Original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
ADMV7410BCEZ
Package
LGA-34
Describe
E-Band Low Noise Downconverter SiP, 81 GHz to 86 GHz

Product Description

The ADMV7420BCEZ is a fully integrated system-in-package (SiP) in-phase/quadrature (I/Q) downconverter that operates between a center frequency (IF) output range of DC to 2 GHz and an RF input range of 81 GHz to 86 GHz. The device provides 10 dB small-signal conversion gain and 30 dBc image rejection. The ADMV7420BCEZ uses an image rejection mixer following the low-noise amplifier, which is driven by a 6× local oscillator (LO) amplifier. Differential I and Q mixer outputs are provided for direct conversion applications. Alternatively, for single-ended applications, the outputs can be combined using an external 90° mixer and two external 180° mixers.


The ADMV7420BCEZ is housed in a fully integrated surface-mount 34-pin 11 mm × 13 mm chip array small outline lead-free cavity (LGA_CAV) package. The ADMV7420BCEZ's package operating temperature range is −40°C to +85°C.


Specifications — ADMV7420BCEZ

RF input frequency range: 81 GHz to 86 GHz (E-band)

IF output frequency range: DC to 2 GHz (supports baseband signals)

Conversion gain: 10 dB (typical)

Image rejection: 30 dBc (typical)

Noise figure: 5 dB (typical)

Input IP3 (third-order intercept point): 1 dBm (typical)

Input IP2 (second-order intercept point): 26 dBm (typical)

Input P1dB (1 dB compression point): -5 dBm (typical)

LO leakage: < -55 dBm (6× LO drive)

I/Q amplitude imbalance: 0.5 dB (typical)

I/Q phase imbalance: 5° (typical)

Package: 34-pin LGA_CAV (11×13×3.07 mm)

Operating temperature range: -40°C to +85°C (industrial grade)


Features — ADMV7420BCEZ

Low noise design: Features a typical noise figure of 5 dB, suitable for high-sensitivity receiver applications.

High Image Rejection: 30 dBc image rejection capability reduces signal interference.

Integrated Design: Fully integrated surface-mount 34-pin 11 mm × 13 mm LGA_CAV package saves space.

Flexible Output Options: Provides differential I and Q mixer outputs, which can also be combined via an external mixer for single-ended output.


Applications — ADMV7420BCEZ

E-band communication systems

High-capacity wireless backhaul

Test and measurement

Aerospace and defense
