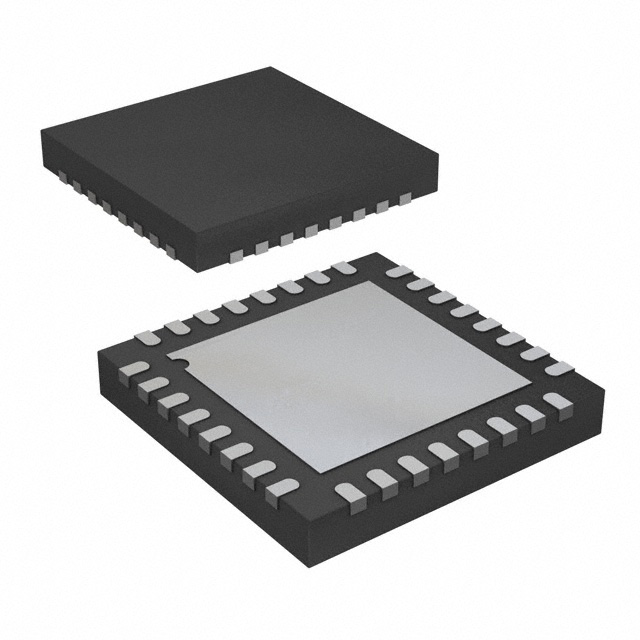

The ADRF6780ACPZN-CSL is a broadband microwave upconverter ranging from 5.9 GHz to 23.6 GHz, optimized for point-to-point microwave radio design. Its main features include:

Broadband RF output frequency range: 5.9 GHz to 23.6 GHz

Two up-conversion modes

Direct frequency conversion from baseband IQ to RF

Drive from the actual IF side to variable frequency

LO input frequency range: 5.4 GHz to 14 GHz

The LO frequency multiplier can reach up to 28 GHz at most

Match 100 Ω balanced RF output, LO input and IF input

High-impedance baseband input

Sideband suppression and carrier feedthrough optimization

Variable attenuators and power detectors for Tx power control

It can be programmed through the four-wire SPI interface

32-pin LFCSP 5 mm × 5 mm microwave package

The ADRF6780ACPZN-CSL can directly convert the baseband I/Q input signal to radio frequency (RF), and it can also convert the carrier frequency single sideband (SSB) input from the real intermediate frequency (IF). The baseband input is in a high-resistance state, and usually a 100 Ω differential rear termination resistor connection is adopted for off-chip termination. The baseband I/Q input path can be disabled, and any modulated real IF signal within the range of 0.8 GHz to 3.5 GHz can be fed into the IF input path and up-converted to 5.9 GHz to 23.6 GHz, while suppressing typically useless sidebands better than 25 dBc. The Serial Port Interface (SPI) supports the adjustment of orthogonal phase adjustment to achieve better sideband suppression performance. Furthermore, the SPI interface can turn off the output power detector when power monitoring is not required to reduce power consumption.

In addition, the ADRF6780ACPZN-CSL is widely used in various scenarios, including point-to-point microwave radio, radar/electronic warfare systems, instruments and meters, automatic test equipment (ATE), etc.
