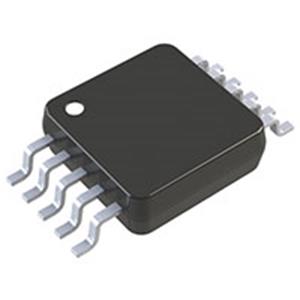

For picture reference, please see the specifications
< >

Commodity Model:AD4002BRMZ

Trade Name:Analogue-to-Digital Converter - ADC

Brand:ADI

Particular Year:25+

Package:MSOP-10

Delivery Date:New and Original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
AD4002BRMZ
Package
MSOP-10
Describe
18-bit 2 MSPS precision pseudo-differential SAR ADC

Product Description

The AD4002BRMZ is an 18-bit, 2 MSPS precision successive approximation register (SAR) analogue-to-digital converter (ADC). It is designed for high-precision data acquisition applications, supporting pseudo-differential and single-ended inputs, and features low noise, low power consumption, and high dynamic performance.


AD4002BRMZ Specifications

Resolution: 18-bit

Sampling rate: 2 MSPS

Input type: Pseudo-differential/single-ended

Data interface: SPI, QSPI, MICROWIRE

Reference type: External

Analogue supply voltage: 1.71V to 1.89V

Digital supply voltage: 1.71V to 5.5V

Operating temperature range: -40°C to +125°C

Package type: 10-MSOP

Features: Synchronous sampling

Signal-to-noise ratio (SNR): 95 dB

Total harmonic distortion (THD): -125 dB

Integral non-linearity (INL): ±3.2 LSB (maximum)

Differential non-linearity (DNL): 0.5 LSB

Input range: 0 V to VREF (VREF between 2.4 V and 5.1 V)

Power consumption: 2.5 mW (500 kSPS, VDD only), 14 mW (2 MSPS, total power consumption)


Application areas

The AD4002BRMZ is widely used in the following areas:

Industrial automation control: sensor signal acquisition

Medical instruments: such as ultrasound equipment and patient monitors

Data acquisition systems: such as oscilloscopes and other test and measurement equipment
