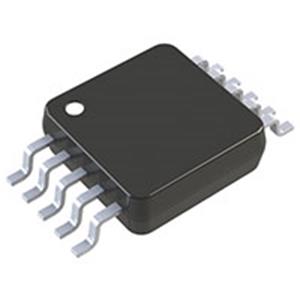

For picture reference, please see the specifications
< >

Commodity Model:AD4006BRMZ

Trade Name:Analogue-to-Digital Converter - ADC

Brand:ADI

Particular Year:25+

Package:MSOP-10

Delivery Date:New and Original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
AD4006BRMZ
Package
MSOP-10
Describe
18-bit, 1 MSPS precision pseudo-differential SAR ADC

Product Description

The AD4006BRMZ is an 18-bit, 1 Msps high-precision successive approximation register (SAR) analogue-to-digital converter (ADC) in a 10-MSOP (3×3 mm) package, suitable for high-precision data acquisition systems in industrial automation, test and measurement, medical instruments, and other applications. The chip supports pseudo-differential or single-ended inputs, integrates SPI, DSP, QSPI, and MICROWIRE interfaces, and features synchronous sampling functionality, significantly enhancing the precision and efficiency of the system's signal chain.


AD4006BRMZ Core Features

18-bit high resolution: Provides 1 LSB INL (integral non-linearity error), ensuring high-precision signal conversion.

1 Msps sampling rate: Suitable for high-speed data acquisition applications such as vibration analysis and spectrum monitoring.

Low-power design:

Analogue supply voltage: 1.71 V to 1.89 V; digital supply voltage: 1.71 V to 5.5 V, compatible with low-power systems.

Synchronous sampling technology reduces timing errors in multi-channel systems.

Wide operating temperature range: -40°C to +125°C, suitable for industrial and automotive environments.

Flexible interface options: Supports SPI, QSPI, DSP, and MICROWIRE, facilitating connection with various MCUs or FPGAs.


AD4006BRMZ Specifications

Resolution: 18 bits

Sampling rate: 1 Msps

Input type: Pseudo-differential / single-ended

Number of input channels: 1

Interface type: SPI, QSPI, DSP, MICROWIRE

Analogue supply voltage range: 1.71V to 1.89V

Digital supply voltage range: 1.71V to 5.5V

Operating temperature: -40°C to +125°C

Package: 10-MSOP (3×3mm)


AD4006BRMZ Applications

Automated test equipment

Machine automation

Medical equipment

Battery-powered devices

Precision data acquisition systems

Instrumentation and control systems
