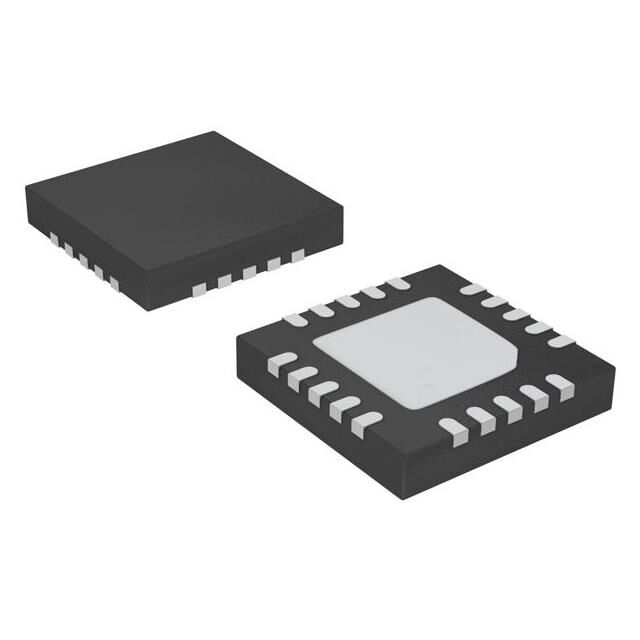

Commodity Model:F1763NBGI8

Trade Name:RF Mixers

Brand:Renesas

Particular Year:25+

Package:20-QFN

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
F1763NBGI8
Package
20-QFN
Describe
RF mixer IC 2.3GHz to 2.7GHz 20-QFN (5x5)

Product Description

The F1763NBGI8 single-channel device is designed to be powered by a single 5V supply. It is optimized for the use of low-side or high-side LO in multi-mode, multi-carrier base station receivers operating in the 2000MHz - 2900MHz frequency band. The F1763NBGI8 supports IF frequencies ranging from 50MHz to 500MHz. The nominal value of this device provides 42 dBm output IP3 and 200mA ICC.

Main specifications

Frequency: 2.3GHz to 2.7GHz

Number of mixers: 1

Gain: 12.2dB

Noise figure: 10.9dB

Auxiliary attribute: -

Current - Power supply: 200mA

Voltage - Power supply: 4.75V to 5.25V

Installation type: Surface mount type

Package/Housing: 20-QFN


In addition, the F1763NBGI8 mixer also features the following characteristics:

The ideal choice for multi-carrier systems

Low-side or high-end LO

11.7dB gain

Superlinear 45dBm IP3O using HS LO or 42dBm IP3O using LS LO

9.7 decibels NF

200 Ω output impedance

Wide flatness performance IF BW

Directly drive the ADC for DPD applications

Low power consumption

5x5 20-pin package

Standby mode


Associated Products

Model

Brand

Package

Quantity

Describe

F1792NLGI8

Renesas

24-VFQFPN

2500

VersaMixer™ wideband gain can be set for RF mixers, ranging from 400MHz to 3.8GHz

ADRF6780ACPZN-CSL

ADI

LFCSP-32

2500

5.9GHz to 23.6GHz, broadband microwave upconverter

ADRF6780ACPZN-CSH

ADI

LFCSP-32

2500

5.9GHz to 23.6GHz, broadband microwave upconverter

ADMV1013ACCZ-CSH

ADI

LGA-40

2000

24 GHz to 44 GHz, broadband, microwave upconverter

HMC329ALC3B

ADI

LCC-12

3000

24GHz to 32GHz, GaAs MMIC Baseband Mixer, LCC-12

HMC7912LP5E

ADI

LFCSP-32

3000

21GHz to 24GHz, GaAs MMIC I/Q Upconverter, LFCSP-32

HMC260ALC3B

ADI

CLCC-12

3000

14GHz to 26GHz, GaAs MMIC Basewave Mixer, CLCC-12

HMC1113LP5E

ADI

QFN-32

3000

RF Mixer——GaAs MMIC I/Q Downconverter, QFN-32

LTC5577IUF

ADI

QFN-16

3000

300MHz to 6GHz, RF Mixer/Active Mixer, QFN-16

HMC8193LC4

ADI

LCC-24

2000

2.5 GHz to 8.5 GHz I/Q Mixers
