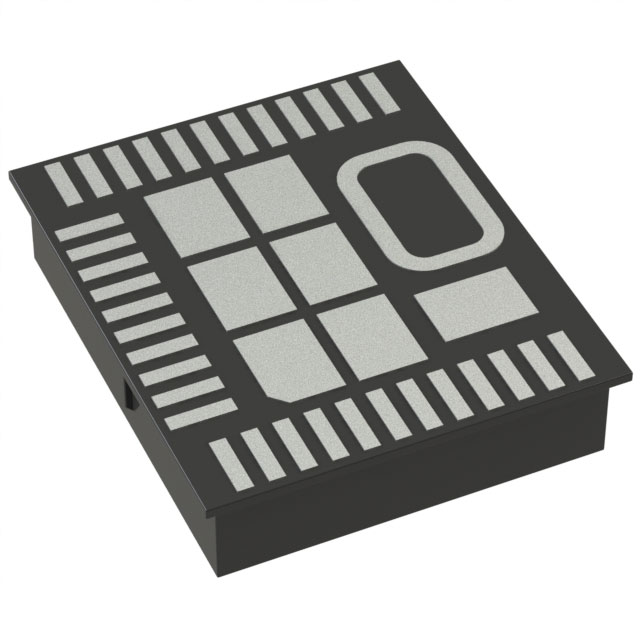

For picture reference, please see the specifications
< >

Commodity Model:ADMV7320BCEZ

Trade Name:RF Mixer

Brand:ADI

Particular Year:25+

Package:LGA-50

Delivery Date:New and Original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
ADMV7320BCEZ
Package
LGA-50
Describe
E-Band Upconverter SiP, 81 GHz to 86 GHz

Product Description

The ADMV7320BCEZ is a fully integrated system-in-package (SiP) in-phase/quadrature (I/Q) upconverter that operates between a direct current to 2 GHz intermediate frequency (IF) input range and an 81 GHz to 86 GHz radio frequency (RF) output range. The kit uses a mirror-suppressed mixer driven by a 6× local oscillator (LO) multiplier. The mixer output is followed by a variable gain amplifier (VGA) and a power amplifier (PA), providing 33 dB (typical) conversion gain. Differential I and Q mixer inputs are provided and can be driven by differential I and Q baseband waveforms suitable for direct conversion applications. Alternatively, a single external 90° mixer and two external 180° mixers can be used to drive the input for single-ended applications.


The ADMV7320BCEZ is housed in a fully integrated surface-mount 50-pin 16.00 mm × 14.00 mm chip array small outline lead-free cavity (LGA_CAV) package. The ADMV7320BCEZ operates over a temperature range of −40°C to +85°C.


ADMV7320BCEZ Specifications

1. Basic Parameters

Manufacturer: Analog Devices Inc.

Package: 50-LGA_CAV (16×14 mm, surface mount)

Operating Temperature Range: -40°C to +85°C (industrial grade)

Supply Voltage: ±5V (requires an LDO regulator)

2. Frequency Characteristics

Input Frequency (IF): DC to 2 GHz (differential I/Q input)

Output Frequency (RF): 81 GHz to 86 GHz (E-band)

LO Multiplier: 6× local oscillator (LO) driving a mirror suppression mixer

3. Gain and Power Performance

Maximum Conversion Gain: 33 dB (typical)

Gain Adjustment Range: 40 dB (minimum)

Saturated Output Power (PSAT): 26 dBm (at 23.5 dB gain)

Output Third-Order Intermodulation Point (OIP3): 31 dBm (at 23.5 dB gain, POUT = 16.5 dBm)

1 dB Compression Point (OP1dB): 25 dBm (at 23.5 dB and 19.5 dB gain)

4. Integrated Features

Built-in power detector (for output power monitoring)

Built-in LO envelope detector (for LO zeroing)

Differential I/Q mixer input (supports direct conversion applications)


ADMV7320BCEZ Applications

E-band communication systems

High-capacity wireless backhaul

Test and measurement

Aerospace and defence
