Trade Name:RF Mixers
Brand:ADI
Particular Year:25+
Package:LGA-40
Delivery Date:New and original
Stock: 2000pcs

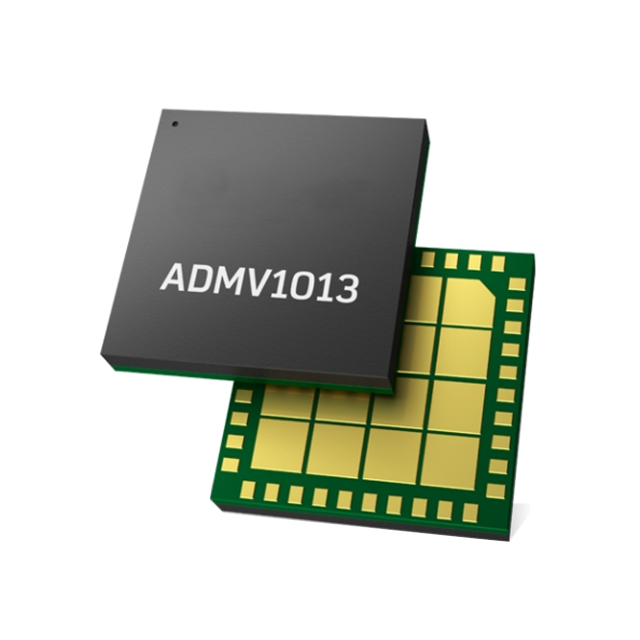

The ADMV1013ACCZ-CSH is a wideband microwave upconverter, optimized for point-to-point microwave radio design operating within the 24 GHz to 44 GHz radio frequency (RF) range. Its main technical parameters include:
Function: Frequency booster
Frequency: 24GHz to 44GHz
Radio frequency type: Radar
Auxiliary attribute: SPI interface
Installation type: Surface mount type
Package/Shell: 40-LGA
The ADMV1013ACCZ can directly convert baseband in-phase orthogonal (I/Q) input signals to RF and perform single-sideband (SSB) upconversion from complex intermediate frequency (IF) inputs. The baseband I/Q input path can be disabled, and modulated complex IF signals within the range of 0.8 GHz to 6.0 GHz can be inserted into the IF path and up-converted to 24 GHz to 44 GHz, while suppressing unwanted sidebands, which is usually better than 26 dBc. The Serial port interface (SPI) allows for the adjustment of orthogonal phase and the gate voltage of the mixer to achieve optimal sideband suppression and local oscillator (LO) zeroing. In addition, the SPI interface allows the output envelope detector to be turned off to reduce power consumption.
In addition, the ADMV1013ACCZ adopts a compact package design, which is convenient for integration into various circuit boards, saving space and improving the overall efficiency of the system. Its wide application fields include:
Point-to-point microwave radio frequency
Radar and electronic warfare systems
Instruments and meters, automatic test equipment (ATE)
