Trade Name:RF Mixer
Brand:ADI
Particular Year:25+
Package:LGA-34
Delivery Date:New and Original
Stock: 3000pcs
The ADMV7410BCEZ is a fully integrated system-in-package (SiP) in-phase/quadrature (I/Q) downconverter that operates between a centre frequency (IF) output range of DC to 2 GHz and a radio frequency (RF) input range of 71 GHz to 76 GHz. The device offers 13 dB small-signal conversion gain and 30 dBc image rejection. The ADMV7410BCEZ uses a mirror suppression mixer following a low-noise amplifier, driven by a 6× local oscillator (LO) amplifier. Differential I and Q mixer outputs are provided for direct conversion applications. Alternatively, for single-ended applications, the outputs can be combined using an external 90° mixer and two external 180° mixers.

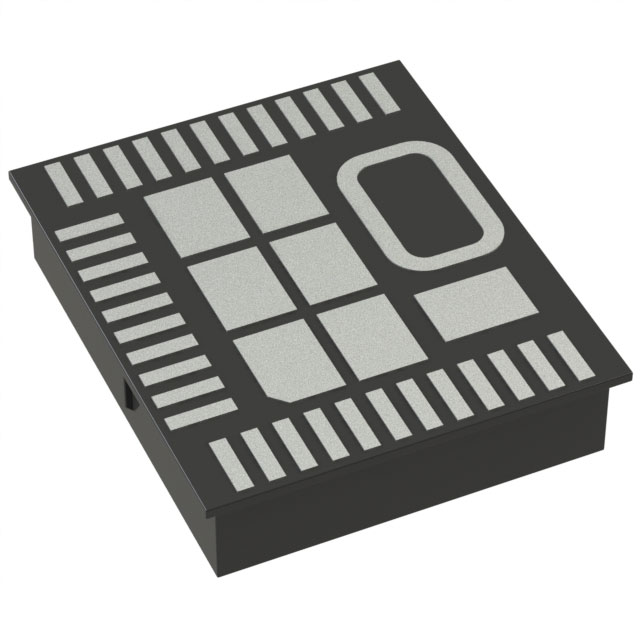

The ADMV7410BCEZ is housed in a fully integrated surface-mount 34-pin 11 mm × 13 mm chip array small outline lead-free cavity (LGA_CAV) package. The ADMV7410BCEZ's package operating temperature range is −40°C to +85°C.
ADMV7410BCEZ Product Applications
E-band communication systems
High-capacity wireless backhaul
Test and measurement
Aerospace and defence
ADMV7410BCEZ Product Features
Conversion gain: 13 dB (typical)
Image rejection: 30 dBc (typical)
Noise figure: 5 dB (typical)
Input IP3: 1 dBm (typical)
Input IP2: 28 dBm (typical)
Input P1dB: −8 dBm (typical)
6× LO leakage at RFIN: <−55 dBm (typical)
I/Q amplitude imbalance: 0.2 dB (typical)
I/Q phase imbalance: 5° (typical)
Fully integrated surface-mount 34-pin 11 mm × 13 mm LGA_CAV package
Model
Brand
Package
Quantity
Describe
Mini-Circuits
QFN-24
3000
Passive wideband in-phase/orthogonal (I/Q) mixer based on GaAs HBT technology
