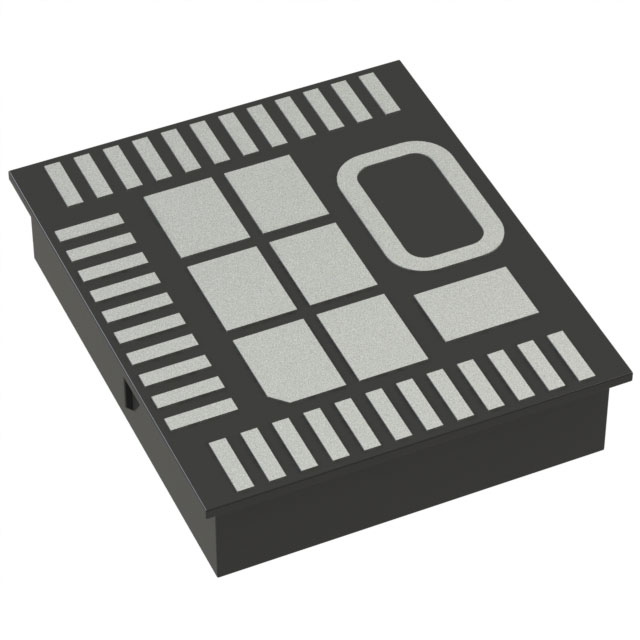

Commodity Model:ADMV7310BCEZ

Trade Name:RF Mixer

Brand:ADI

Particular Year:25+

Package:LGA-50

Delivery Date:New and Original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
ADMV7310BCEZ
Package
LGA-50
Describe
E-Band Upconverter SiP, 71 GHz to 76 GHz

Product Description

The ADMV7310BCEZ is a fully integrated system-in-package (SiP) in-phase/quadrature (I/Q) upconverter that operates between a direct current to 2 GHz intermediate frequency (IF) input range and a 71 GHz to 76 GHz radio frequency (RF) output range. The kit uses a mirror-suppressed mixer driven by a 6× local oscillator (LO) multiplier. The mixer output is followed by a variable gain amplifier (VGA) and a power amplifier (PA), providing 35 dB (typical) conversion gain. Differential I and Q mixer inputs are provided and can be driven by differential I and Q baseband waveforms suitable for direct conversion applications. Alternatively, a single external 90° mixer and two external 180° mixers can be used to drive the input for single-ended applications.


The ADMV7310BCEZ is housed in a fully integrated surface-mount 50-pin 16.00 mm × 14.00 mm chip array small outline lead-free cavity (LGA_CAV) package. The ADMV7310BCEZ operates over a temperature range of −40°C to +85°C.


Features (ADMV7310BCEZ)

Maximum conversion gain: 35 dB (typical)

Gain adjustment range: 40 dB (minimum)

PSAT: 26 dBm (typical) at gain = 23.5 dB and 19.5 dB

OIP3: 31 dBm (typical) at gain = 23.5 dB and POUT = 16.5 dBm per tone signal

OP1dB: 25 dBm (typical) at gain = 23.5 dB and 19.5 dB

Built-in power detector

Built-in envelope detector for LO zeroing

Fully integrated surface-mount 50-pin 16.00 mm × 14.00 mm LGA_CAV package


Applications (ADMV7310BCEZ)

E-band communication systems

High-capacity wireless backhaul

Test and measurement

Aerospace and defence

Associated Products

Model

Brand

Package

Quantity

Describe

ADMV7410BCEZ

ADI

LGA-34

3000

E-Band Low Noise Downconverter SiP, 81 GHz to 86 GHz

ADMV7410BCEZ

ADI

LGA-34

3000

E-Band Low Noise Downconverter SiP, 71 GHz to 76 GHz

ADMV7320BCEZ

ADI

LGA-50

3000

E-Band Upconverter SiP, 81 GHz to 86 GHz

F1792NLGI8

Renesas

24-VFQFPN

2500

VersaMixer™ wideband gain can be set for RF mixers, ranging from 400MHz to 3.8GHz

F1763NBGI8

Renesas

20-QFN

3000

RF mixer IC 2.3GHz to 2.7GHz 20-QFN (5x5)

ADRF6780ACPZN-CSL

ADI

LFCSP-32

2500

5.9GHz to 23.6GHz, broadband microwave upconverter

ADRF6780ACPZN-CSH

ADI

LFCSP-32

2500

5.9GHz to 23.6GHz, broadband microwave upconverter

ADMV1013ACCZ-CSH

ADI

LGA-40

2000

24 GHz to 44 GHz, broadband, microwave upconverter

HMC329ALC3B

ADI

LCC-12

3000

24GHz to 32GHz, GaAs MMIC Baseband Mixer, LCC-12

HMC7912LP5E

ADI

LFCSP-32

3000

21GHz to 24GHz, GaAs MMIC I/Q Upconverter, LFCSP-32
