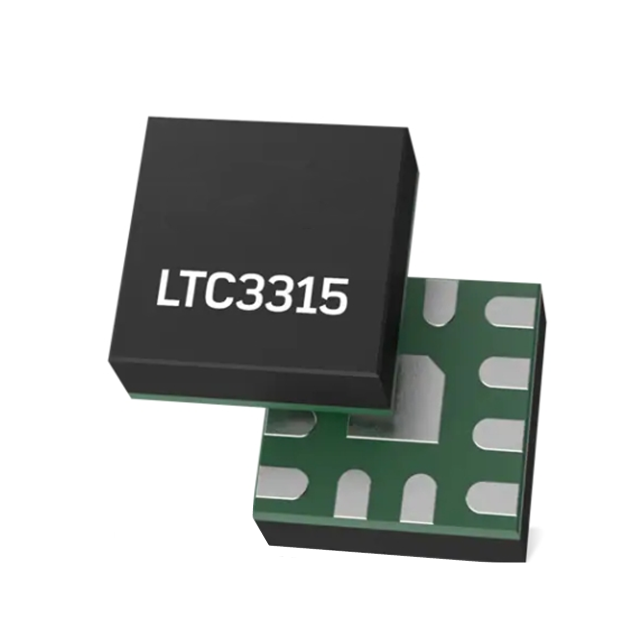

For picture reference, please see the specifications
< >

Commodity Model:LTC3315BJV

Trade Name:Synchronous Buck Converter

Brand:ADI

Particular Year:25+

Package:LQFN-12

Delivery Date:New and original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LTC3315BJV
Package
LQFN-12
Describe
Dual-channel, 5V, 2A synchronous step-down DC/DC converter

Product Description

The LTC3315BJV device is a dual-channel, 5V, 2A synchronous step-down DC/DC converter, available in a 2mm x 2mm LQFN package. Two step-down converters operate in a constant frequency peak current mode at a switching frequency up to 10MHz, with a minimum on-time as low as 25ns, enabling high efficiency and fast transient response in a small-sized application package.

In addition, the LTC3315BJV is used in server, telecommunication power supply, fiber optic network, distributed DC power supply system (POL), FPGA, ASIC, microprocessor core power supply, etc. ‌.


Main characteristics

The features of LTC3315BJV include:

Dual output, with an output current of 2A for each output

High efficiency: 19mΩ NMOS and 75mΩ PMOS

Wide bandwidth and fast transient response

The switching frequency can be synchronized up to 10MHz

VIN range: 2.25V to 5.5V

VOUT range: 0.5V to VIN

VOUT accuracy: ±1%

Low ripple Burst Mode® operation

Peak current mode control

Minimum connection time: 25 seconds

Safely withstand overload and inductance saturation

Turn-off current: 1.2µA

Precise 400mV activation threshold

Internal soft start and compensation

Normal power output

Thin and heat-resistant enhanced 12-pin type

2mm × 2mm × 0.74mm LQFN package

Comply with the EC-Q100 standard for automotive applications


Associated Products

Model

Brand

Package

Quantity

Describe

LMR33620BRNXR

TI

VQFN-12

9000

SIMPLE SWITCHER® 3.8V to 36V, 2A synchronous buck converter with ultra-low EMI

TPS561208DDCR

TI

SOT-23-6

12000

4.5V to 17V input, 1A output, synchronous buck converter

TPS56C215RNNR

TI

VQFN-18

9000

3.8V to 17V, 12A synchronous SWIFT™ buck converter with D-CAP3 control

TPS62161DSGR

TI

WSON-8

2000

3V to 17V, 1A buck converter with DCS-Control™

TPS65250RHAT

TI

VQFN-40

2250

4.5V to 18V input, 3A/2A/2A output, three-channel synchronous buck converter

LMR604103SRAKR

TI

WQFN-9

2000

36V 1A Synchronous Buck Converter

MP8765GQ-Z

MPS

QFN16

35000

24V, 6A High Efficiency Synchronous Step-down Converter

LM53601MQDSXRQ1

TI

WSON-10

12000

Automotive 3.5V to 36V, 1A synchronous 2.1MHz buck converter

TPS54628DDAR

TI

HSOIC-8

30000

4.5V to 18V, 6A Synchronous Buck Converter with Eco-Mode

LTC3315BMPV

ADI

LQFN-12

2500

Dual-channel, 5V, 2A synchronous step-down DC/DC converter
