The HMC649ALP6E is a 6-bit digital phase shifter chip with a rated frequency range of 3 GHz to 6 GHz, providing 360-degree phase coverage with an LSB of 5.625 degrees. The HMC649ALP6E features a low RMS phase error of 3 degrees across all phase states and extremely low insertion loss variation of ±0.5 dB. This high-precision phase shifter is controlled via a 0/5 V positive control logic. The HMC649ALP6E is housed in a compact 6 mm x 6 mm plastic lead-free SMT package, internally matched to 50 Ω, requiring no external components.

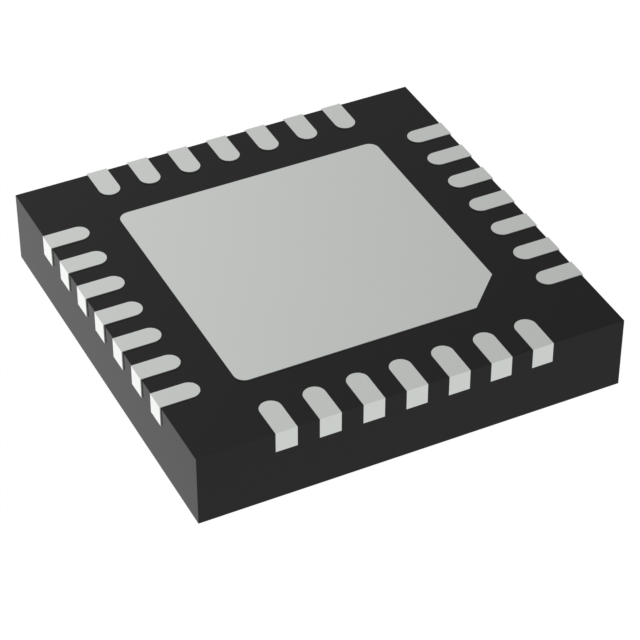

HMC649ALP6E: 3 GHz to 6 GHz, 6-bit digital phase shifter chip, QFN-28

Low RMS phase error: 3 degrees

Low insertion loss: 6.5 dB to 8 dB

High linearity: 44 dBm

Frequency: 3 GHz to 6 GHz

Positive control logic

360-degree coverage, LSB = 5.625 degrees

Chip dimensions: 4.5 mm x 1.9 mm x 0.1 mm

28-pin QFN lead-free SMT package: 36 mm²

HMC649ALP6E Applications:

EW receivers

Weather and radar

Satellite communications

Beamforming modules

Phase cancellation
