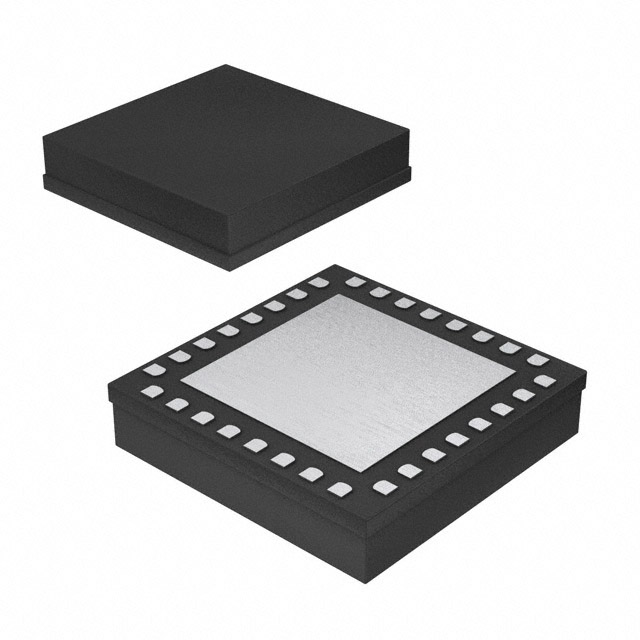

Commodity Model:HMC642ALC5

Trade Name:Digital Phase Shifter

Brand:ADI

Particular Year:25+

Package:QFN-32

Delivery Date:New and Original

Stock: 5500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
HMC642ALC5
Package
QFN-32
Describe
9 GHz to 12.5 GHz, 6-bit digital phase shifter chip, QFN-32

Product Description

HMC642ALC5: 9 GHz to 12.5 GHz, 6-bit digital phase shifter chip, QFN-32


Model: HMC642ALC5

Package: QFN-32

Type: Digital Phase Shifter

Overview:

The HMC642ALC5 is a 6-bit digital phase shifter chip with a rated frequency range of 9 GHz to 12.5 GHz, providing 360-degree phase coverage with an LSB of 5.625 degrees. The HMC642ALC5 features extremely low RMS phase error of 2.5 to 3.5 degrees and extremely low insertion loss variation of ±0.25 dB to ±0.4 dB across all phase states. This high-precision phase shifter is controlled via 0/5 V positive control logic. The HMC642ALC5 is housed in a compact 5 mm x 5 mm leadless SMT ceramic package with internal 50 Ω matching, requiring no external components.


HMC642ALC5 Specifications:

Function: Phase shift

Frequency: 9 GHz to 12.5 GHz

RF Type: Radar

Mounting Type: Surface Mount

Package/Housing: 32-TFQFN Bare Pad

Supplier Device Package: 32-QFN (5x5)


HMC642ALC5 Product Features:

Low RMS Phase Error: 2.5° to 3.5°

Low Insertion Loss: 6.5 dB to 7 dB

High linearity: 41 dBm

Positive control voltage and positive control logic

360-degree coverage, LSB = 5.625 degrees

Die size: 3.25 mm x 1.9 mm x 0.1 mm

32-pin SMT ceramic package: 25 mm²
