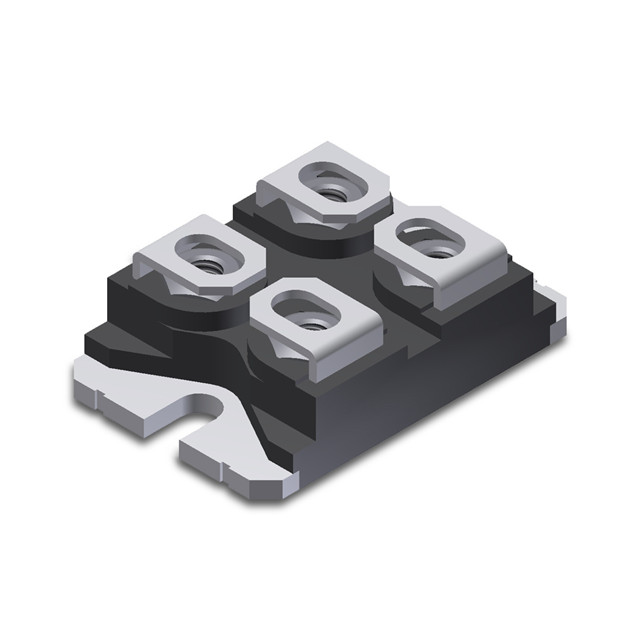

The IXYN180N65A5 module features a rated voltage of 650V, a current range of 180A, and a low gate charge. This product is optimized for applications that require a switching frequency of 0 to 5kHz and has the following main specifications:

IGBT type: -

Configuration: Single channel

Voltage - Emitter breakdown (maximum value) : 650 V

Current - Collector (Ic) (maximum) : 340 A

Power - Maximum value: 940 W

Vce(on) (maximum value) at different Vge and Ic: 1.35V @ 15V, 100A

Current - Collector cut-off (maximum value) : 25 µA

Input capacitance (Cies) at different Vce: 8640 pF @ 25 V

Input: Standard

NTC thermistor: None

Operating temperature: -55°C to 175°C (TJ)

Installation type: Base installation

Package/Shell: SOT-227B

In addition, the IXYN180N65A5 is widely used in applications including power inverters, PFC circuits, lamp ballasts, battery chargers and welding machines.
