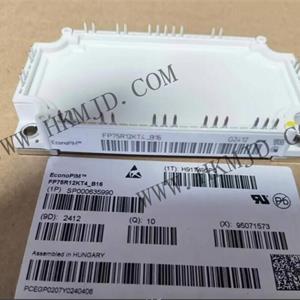

The FP75R12KT4-B16 is an IGBT power module launched by Infineon, belonging to the EconoPIM™ 3 series. It adopts a three-phase inverter configuration and is suitable for high-power applications such as industrial motor drives, inverters, and UPS power supplies. The module integrates trench field-stop IGBT technology, offering 1200V voltage rating and 150A continuous current capability, and incorporates a three-phase bridge rectifier and NTC thermistor to optimise system thermal management.

FP75R12KT4-B16 Features

High-performance IGBT technology

Trench Field Stop (TFS) structure reduces switching losses.

Vce(on) as low as 2.25V @ 15V, 75A, enhancing energy efficiency.

Integrated design

Three-phase inverter + three-phase bridge rectifier reduces the need for external components.

Built-in NTC thermistor for real-time monitoring of module temperature.

High reliability

Operating temperature range: -40°C to 150°C (TJ), suitable for harsh environments.

Copper substrate packaging enhances thermal dissipation and supports base mounting.

Automotive and industrial certification

Compliant with RoHS standards, with some models supporting AEC-Q100 (automotive grade).

Technical Specifications

Model: FP75R12KT4-B16

Manufacturer: Infineon Technologies

Type: IGBT module

Configuration: Three-phase inverter

Rated voltage (Vces): 1200V

Continuous current (Ic): 150A

Peak current (Ifsm): 400A

Maximum Power: 385W

Vce(on): 2.25V @ 15V, 75A

Input Capacitance (Cies): 4.3nF @ 25V

Package: Module (Socket Mount)

Operating Temperature: -40°C to 150°C
