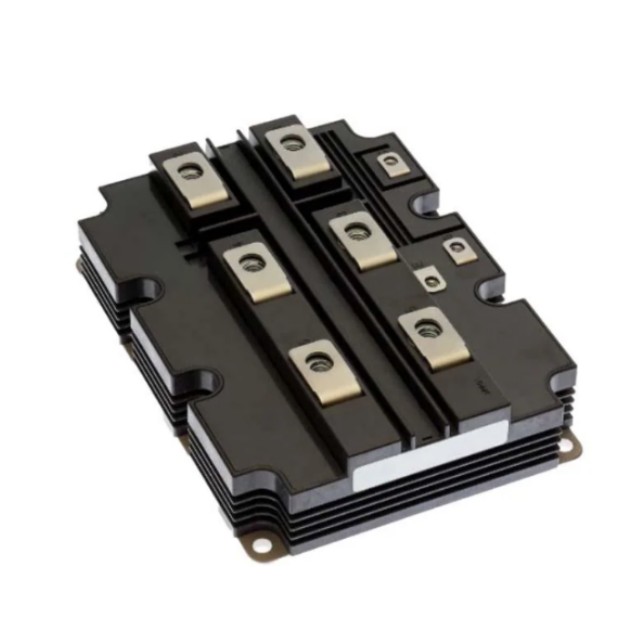

The CM900HG-130X is a high-performance IGBT power module from Mitsubishi Electric, part of the HVIGBT X series. This module is specifically designed for high-voltage, high-current industrial applications, offering high reliability, low conduction losses, and fast switching capabilities, making it suitable for a wide range of high-power application scenarios.

CM900HG-130X Product Features

High Voltage and High Current: Maximum collector-emitter voltage (VCE) of 6500V and maximum continuous collector current (IC) of 900A.

High Insulation Voltage: Insulation voltage (Viso) up to 10,200 Vrms, ensuring safety in high-voltage environments.

Low On-Voltage: Typical on-voltage (VEC) of 3.2V at 25°C, significantly reducing power loss.

Fast Switching Capability: Features fast switching characteristics, suitable for high-frequency applications.

RoHS compliant: Lead-free design, environmentally friendly and highly reliable.

Modular design: Easy to install and maintain, suitable for various industrial applications.

CM900HG-130X Technical Specifications

Maximum collector-emitter voltage (VCE): 6500V

Maximum continuous collector current (IC): 900A

Insulation voltage (Viso): 10,200 Vrms

On-state voltage (VEC): 3.2V (typical value at 25°C)

Operating temperature range: -55°C to +150°C

Package type: Modular design

Application areas

The CM900HG-130X is widely used in the following fields:

Railway vehicles: Used in railway vehicle traction systems.

Power equipment: Suitable for DC transmission equipment.

Wind power generation: Used in wind turbine converters to achieve efficient power conversion.

Industrial motor drives: Suitable for high-power motor drive systems, providing stable current output.

High-voltage inverters: Used in high-voltage inverters to achieve efficient power transmission and control.
