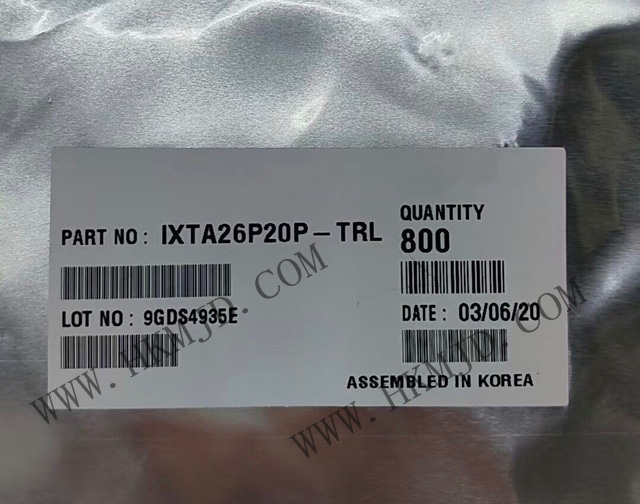

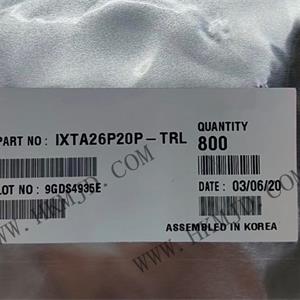

IXTA26P20P is manufactured using Littelfuse's patented Polar™ process, a P-channel enhanced power MOSFET in a TO-263 (D²Pak-3L) surface mount package, featuring low on-resistance and low gate charge, easy to parallel, capable of withstanding high dv/dt and avalanche energy, suitable for high-frequency, high-power-density applications.

IXTA26P20 Key Features

• Low RDS(on): Typical 140 mΩ, maximum 170 mΩ (at VGS = 10 V, ID = 13 A)

• Low gate charge: Qg = 56 nC (typical at VGS = 10 V)

• Fast switching: Rise/fall time < 100 ns, easy to drive at high frequencies

• High power density: 300 W (Tc = 25 °C)

• Avalanche and dv/dt rated, positive temperature coefficient, easy to parallel for current sharing

IXTA26P20 Product Attributes

Product Type: MOSFET

Technology: Si

Mounting Style: SMD/SMT

Package/Case: D2PAK-3 (TO-263-3)

Transistor Polarity: P-Channel

Number of Channels: 1 Channel

Vds - Drain-Source Breakdown Voltage: 200 V

Id - Continuous Drain Current:    26 A

Rds On - Drain-Source On-Resistance:    170 mOhms

Vgs - Gate-Source Voltage:    -20 V, +20 V

Vgs th - Gate-Source Threshold Voltage:    2 V

Qg - Gate charge:    56 nC

Minimum operating temperature:    -55°C

Maximum operating temperature:    +150°C

Pd - Power dissipation:    300 W

Channel mode:    Enhancement

IXTA26P20 Typical applications

• High-side switch: Automotive, industrial 24 V/48 V bus

• Synchronous buck or boost DC-DC converter

• Motor drive: DC/brushless motor H-bridge high-side arm

• Power management: Battery protection, electronic fuse, solid-state relay

• High-current switching and load control in test and measurement equipment
