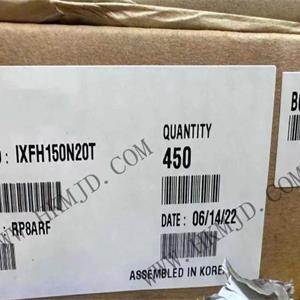

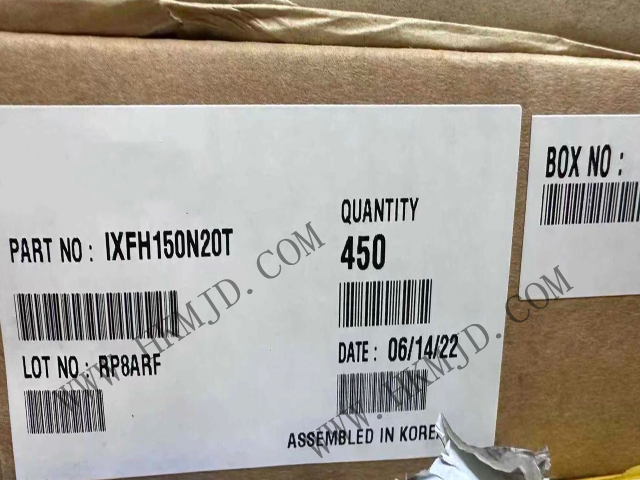

IXFH150N20T is 200V 150A N-Channel enhancement power MOSFET transistors.

Specifications Of IXFH150N20T

FET Type:N-Channel

Technology:MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss):200 V

Current - Continuous Drain (Id) @ 25°C:150A (Tc)

Drive Voltage (Max Rds On, Min Rds On):10V

Rds On (Max) @ Id, Vgs:15mOhm @ 75A, 10V

Vgs(th) (Max) @ Id:5V @ 4mA

Gate Charge (Qg) (Max) @ Vgs:177 nC @ 10 V

Vgs (Max):±20V

Input Capacitance (Ciss) (Max) @ Vds:11700 pF @ 25 V

Power Dissipation (Max):890W (Tc)

Operating Temperature:-55°C ~ 150°C (TJ)

Features Of IXFH150N20T

International Standard Packages

Avalanche Rated

High Current Handling Capability

Fast Intrinsic Rectifier

Low RDS(on)

Advantages Of IXFH150N20T

Easy to Mount

Space Savings

High Power Density

Applications Of IXFH150N20T

DC-DC Converters

Battery Chargers

Switch-Mode and Resonant-Mode Power Supplies

DC Choppers

AC Motor Drives

Uninterruptible Power Supplies

High Speed Power Switching Applications
