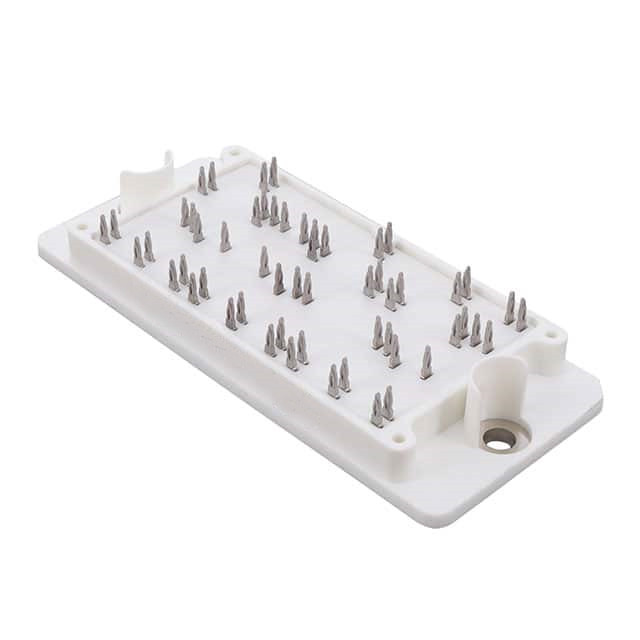

The NXH500B100H7Q2F2PHG is a dual-channel flyover capacitor boost module. Each channel contains two 1000 V, 500 A IGBTs and two 1200 V, 120 A SiC diodes. This module contains an NTC thermistor.

The following are the main features and applications of the NXH500B100H7Q2F2PHG:

Features

• Fly over the capacitor boost module

• 1000 V field cutoff 7 IGBT and 1200 V SiC diode

• Low inductance layout

• Solder pins and crimp pins

• Integrated NTC thermistor

• These devices are lead free, halide free and RoHS compliant

Typical applications

Solar inverter

Energy storage system

Technical Specification

IGBT type: Grooved field cut-off

Configuration: Three-stage inverter

Voltage - Emitter breakdown (maximum value) : 1000 V

Current - Collector (Ic) (maximum value) : 209 A

Power - Maximum value: 497 W

Vce(on) (maximum value) at different Vge and Ic: 2.3V @ 15V, 240A

Current - Collector cut-off (maximum value) : 500 µA

Input capacitance (Cies) at different Vce: 18488 pF @ 20 V

Input: Standard

NTC thermistor: Yes

Operating temperature: -40°C to 175°C (TJ)

Installation type: Base installation

Package/Shell: Module

Supplier device package: 50-PIM (93x47)
