Trade Name:IGBT Modules
Brand:ON
Particular Year:25+
Package:PIM58
Delivery Date:New and original
Stock: 1500pcs

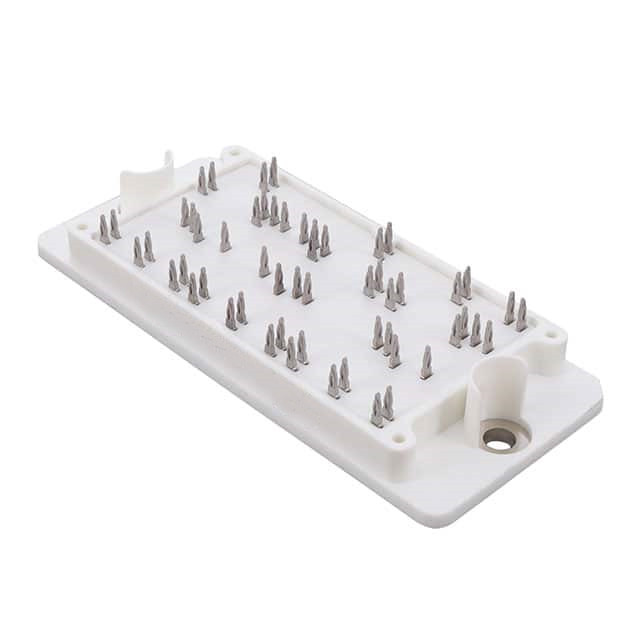

The NXH500B100H7F5SHG is a dual-channel flyover capacitor boost module. Each channel contains two 1000 V, 500 A IGBTs and two 1200 V, 120 A SiC diodes. This module contains an NTC thermistor.
This module has the following technical parameters:
IGBT type: Grooved field cut-off
Configuration: Three-stage inverter
Voltage - Emitter breakdown (maximum value) : 1000 V
Current - Collector (Ic) (maximum value) : 210 A
Power - Maximum value: 503 W
Vce(on) (maximum value) at different Vge and Ic: 2.3V @ 15V, 240A
Current - Collector cut-off (maximum value) : 500 µA
Input capacitance (Cies) at different Vce: 18488 pF @ 20 V
Input: Standard
NTC thermistor: Yes
Operating temperature: -40°C to 175°C (TJ)
Installation type: Base installation
Package/Shell: Module
Supplier device package: 58-PIM (112x62)
Features of NXH500B100H7F5SHG
• Fly over the capacitor boost module
• 1000V field cutoff 7 IGBT and 1200V SiC diode
• Low inductance layout
• Welding needle
• Integrated NTC thermistor
• It is a lead-free and halide free device
Typical applications
Solar inverter
Energy storage system
Model
Brand
Package
Quantity
Describe
ON
PIM60
1000
IGBT module grooved field-stop three-stage inverter 1050V 429A 1080W base installation
ON
PIM60
1000
IGBT module grooved field-stop three-phase inverter 1050 V 429 A 1080 W base installation
ON
PIM50
1000
IGBT module grooved field-stop three-stage inverter 1000 V 209 A 497 W base installation 50PIM
ST
SDIP-25L
2300
SLLIMM™ small low-loss intelligent molded module IPM, 3-phase inverter, 10 A, 600 V short-circuit rugged IGBT
