Trade Name:Switch Controller
Brand:TI
Particular Year:24+
Package:VQFN-32
Delivery Date:New and Original
Stock: 10000pcs
The TPS53626RSMR device is a driverless, VR13 SVID compliant, synchronous buck controller. Advanced control features such as D-CAP+ architecture with overlapping pulse support undershoot reduction (USR) and overshoot reduction (OSR) provide fast transient response, lowest output capacitance and high efficiency. The device also supports single-phase operation in CCM or DCM for light-load efficiency boost. The device integrates a full set of VR13 I/O features including VR_READY (PGOOD), ALERT and VR_HOT. The SVID interface address allows programming from 00h to 07h. Adjustable control of VOUT slew rate can be programmed as high as 20mV/uS.
Paired with the TI NexFET Power Stage, this total solution delivers exceptionally high speed and low switching loss. The TPS53626RSMR also offers four default modes that configure VCCIO and VMCP settings with one single external resistor to save component count and board space.
The TPS53626RSMR device package is a space saving, thermally enhanced 32-pin VQFN package that operates from –40°C to 105°C.
Features of TPS53626RSMR
Intel VR13 Serial VID (SVID) Compliant
1- or 2-Phase Operation
Default Configuration Mode for VR13 VCCIO and VMCP
Supports Both Droop and Non-Droop Applications
8-Bit DAC with 5-mV Step
Output Range: 0.25 V to 1.52 V
Optimized Efficiency at Light and Heavy Loads
8 Independent Levels of Overshoot Reduction (OSR) and Undershoot Reduction (USR)
Driverless Configuration for Efficient High-Frequency Switching
Supports Discrete, Power Block, Power Stage or DrMOS MOSFET Implementations
Accurate, Adjustable Voltage Positioning
300-kHz to 1-MHz Frequency Selections
Patented AutoBalance Phase Balancing
Programmable ON-Pulse Extension for Load Transient Boost
Programmable Auto DCM and CCM Operation
Selectable 8-level Current Limit
4.5-V to 28-V Conversion Voltage Range
Small, 4 mm × 4 mm, 32-Pin, VQFN PowerPad Package
Model
Brand
Package
Quantity
Describe
ADI
PQFN-28
3000
140V, low IQ, synchronous step-down type controller with programmable 5V to 10V gate drive
MPS
QFN-32
5000
36V Synchronous Buck-Boost Controller with Current Monitoring and Serial Interface and OCP Adjustment via IPWM
TI
TSSOP-16
12500
90V Active Clamped Voltage Mode PWM Controller with P or N-Channel Clamp FET and 0.5V CS Threshold
TI
TSSOP-24
10000
Green Phase Shift Full Bridge Controller with Synchronous Rectification Function
Renesas
TQFN-48
3000
Robust Ripple Regulator™ (R3) 3+2+1 Core, Voltage Regulator for IMVP8™ CPUs
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
Texas Instruments (TI), abbreviated as TI, is the worlds leading semiconductor company providing innovative digital signal processing (DSP) and analog device technologies for real-world signal processing. In addition to the semiconductor business, it …
DP83TC811SWRNDRQ1
The DP83TC811SWRNDRQ1 Low Power Automotive PHYTER 100BASE-T1 Ethernet Physical Layer Transceiver provides the physical layer functionality required for transmitting and receiving data over shielded single twisted pair cable. The device enables xMII fl…TLV8542RUGR

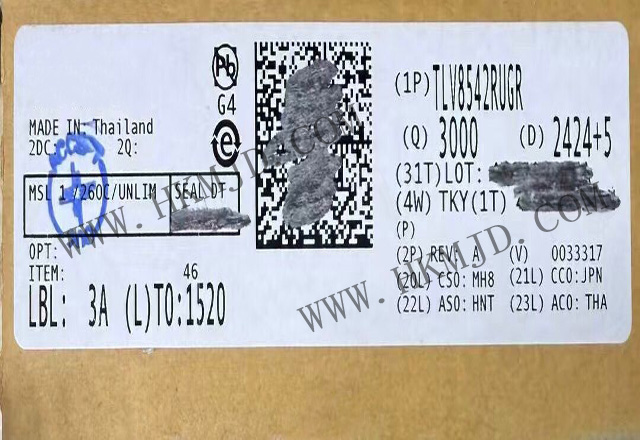

TLV8542RUGR: 3.6V, 8kHz, Dual, Ultra-Low Quiescent Current (500nA), RRIO Operational AmplifierModel No.: TLV8542RUGRPackage: X2QFN-8Type: Operational AmplifierOverview:The TLV8542RUGR ultra-low-power operational amplifiers (op amps) are suitable for c…ISO7221ADR
