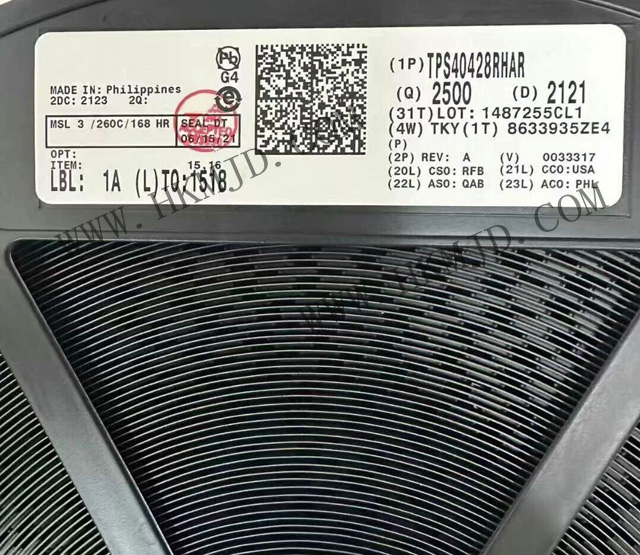

Commodity Model:TPS40428RHAR

Trade Name:Switch Controller

Brand:TI

Particular Year:21+

Package:VQFN-40

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
TPS40428RHAR
Package
VQFN-40
Describe
Dual output, two-phase, stackable PMBus synchronous buck controller without driver

Product Description

The TPS40428RHAR device is a PMBus synchronous buck controller without a driver. Its default operating mode is Smart Power Mode, and it can operate in non-Smart Power Mode after PMBus programming and a power cycle. The device can be configured for dual-output or dual-phase operation. Additionally, the device supports up to four phases in a stack, enabling a maximum load current of 120A. Two-phase, three-phase, or four-phase interleaved phase shifting reduces input and output ripple, thereby minimizing input and output capacitance.


Its wide input voltage range supports 5V and 12V intermediate power buses. The reference voltage accuracy of 0.5% meets the precise voltage requirements of modern application-specific integrated circuits (ASICs).


In accordance with the PMBus standard, the TPS40428 device can be programmed for reference voltage, fault limit, UVLO threshold, soft-start time, and turn-on and turn-off delays.


Additionally, the device incorporates a precise measurement system for monitoring the output voltage, current, and temperature of each channel.


TPS40428RHAR Features

Factory defaulted to Smart Power Mode (compatible with Texas Instruments (TI) CSD95378B Smart Power Stage and pin-to-pin equivalent to the TPS40425, which is factory defaulted to non-Smart Power Mode)

Single-supply operation: 4.5V to 20V

VOUT = 0.6V

Dual or multi-phase synchronous buck controller

Independent high-speed AVS interface

Fast transient response

Up to four phases can be stacked

2-phase, 3-phase, or 4-phase interleaved phase shift

Precise current sharing

PMBus interface functionality

2mV step boundary rise/fall

Programmable fault limit and response

±0.8% VOUT

Precise current monitoring

±3°C external temperature monitoring in smart power mode

Programmable under-voltage lockout (UVLO) on/off thresholds

Programmable soft-start time, turn-on delay, and turn-off delay

On-chip non-volatile memory (NVM) for storing custom configurations

Reference voltage of 0.6V with 0.5% accuracy over the temperature range of –40°C to 125°C

Programmable ƒSW, range from 200kHz to 1.5MHz

Supports pre-biased output

Differential remote sensing

Synchronization with external clock

Overcurrent/overvoltage/undervoltage/over-temperature (OC/OV/UV/OT) fault protection

40-pin, 6mm x 6mm, QFN package


TPS40428RHAR Parameters

Input voltage range: 4.5V to 20V

Output voltage: 0.6V

Maximum output current: 120A (stacked 4 phases)

Switching frequency range: 200kHz to 1.5MHz

Operating temperature range: -40°C to 125°C

Package type: 40-pin VQFN (6mm x 6mm)


TPS40428RHAR Applications

Wireless Infrastructure

Switches/Routers Networking/Servers/Storage

Associated Products

Model

Brand

Package

Quantity

Describe

MAX17559ACJ

Maxim

TQFP-32

3000

60V, dual-channel output, synchronous step-down type controller

TPS51125ARGER

TI

VQFN-24

6000

Dual-channel synchronous buck controller with 100mA LDO and Out-of-Audio™, 4.5V to 28V

NCP13992ABDR2G

ON

SOIC-16

5000

Current Mode Resonant Controller (Integrated High Voltage Driver, Enhanced Light Load)

LTC7897RUFD

ADI

PQFN-28

3000

140V, low IQ, synchronous step-down type controller with programmable 5V to 10V gate drive

LTC7871ELWE

ADI

LQFP-64

3000

Six-Phase, Synchronous Bidirectional Buck or Boost Controller

CSD95480RWJ

TI

VQFN-41

15000

Switching Controller 70A Synchronous Buck NexFET Smart Power

MP2984GR

MPS

QFN-32

5000

36V Synchronous Buck-Boost Controller with Current Monitoring and Serial Interface and OCP Adjustment via IPWM

LM5025AMTCX

TI

TSSOP-16

12500

90V Active Clamped Voltage Mode PWM Controller with P or N-Channel Clamp FET and 0.5V CS Threshold

RAA229134GNP

Renesas

QFN-48

2000

IMVP9.1 Digital Switching Controllers

ICE5AR4770AG

Renesas

PG-DSO-12

5000

Switching Controller COOLSET (INCL. GEN5)
