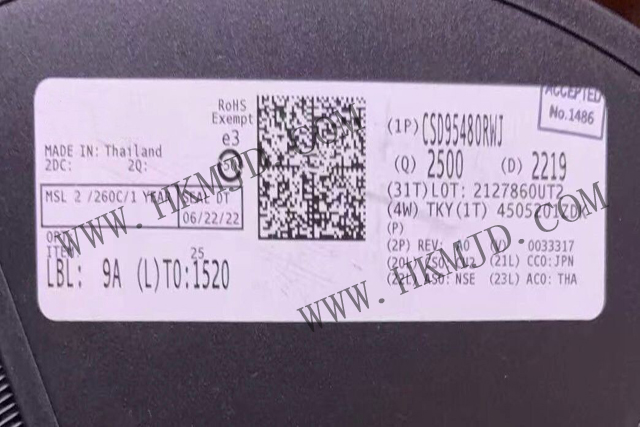

Trade Name:Switch Controller
Brand:TI
Particular Year:22+
Package:VQFN-41
Delivery Date:New and Original
Stock: 15000pcs
The CSD95480RWJ NexFET™ power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
Features Of CSD95480RWJ
70-A Continuous Operating Current Capability
Over 95% System Efficiency at 30 A
High-Frequency Operation (up to 1.25 MHz)
Diode Emulation Function
Temperature Compensated Bi-Directional Current Sense
Analog Temperature Output
Fault Monitoring
3.3-V and 5-V PWM Signal Compatible
Tri-State PWM Input
Integrated Bootstrap Switch
Optimized Dead Time for Shoot-Through Protection
High-Density QFN 5-mm × 6-mm Footprint
Ultra-Low-Inductance Package
System Optimized PCB Footprint
Thermally Enhanced Topside Cooling
RoHS Compliant – Lead-Free Terminal Plating
Halogen Free
Applications Of CSD95480RWJ
• Multiphase Synchronous Buck Converters
– High-Frequency Applications
– High-Current, Low-Duty Cycle Applications
• POL DC-DC Converters
• Memory and Graphic Cards
• Desktop and Server VR12.x / VR13.x V-Core Synchronous Buck Converters
