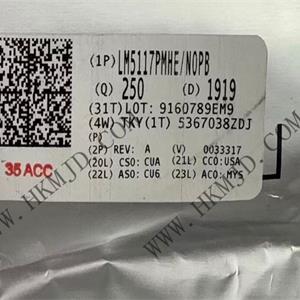

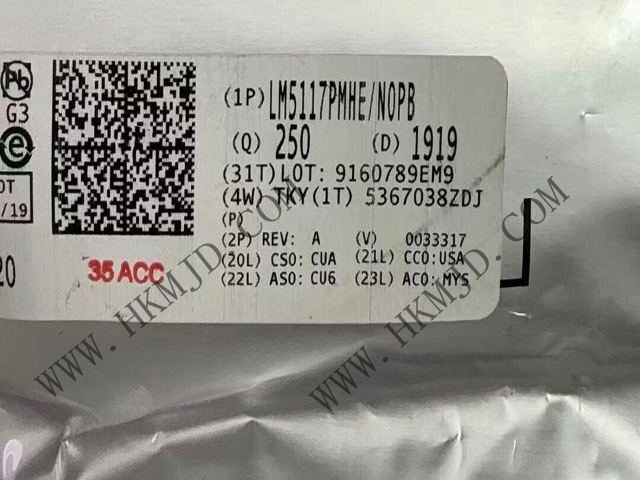

For picture reference, please see the specifications
< >

Commodity Model:LM5117PMHE

Trade Name:DC-DC Switch Controller

Brand:TI

Particular Year:19+

Package:HTSSOP-20

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
LM5117PMHE
Package
HTSSOP-20
Describe
5.5V to 65V, Current Mode Synchronous Buck Controller, HTSSOP-20

Product Description

LM5117PMHE: 5.5V to 65V Wide Input Voltage, Current Mode Synchronous Buck Controller


Basic Information:

Model No.: LM5117PMHE

Package: HTSSOP-20

Type: Synchronous Buck Controller


Overview:

The LM5117PMHE is a synchronous buck controller for buck regulator applications powered by high voltage or wide range input supplies. The control method is based on current mode control using simulated current ramps. The operating frequency is programmable from 50kHz to 750kHz. The LM5117PMHE has a unique analogue telemetry function that provides average output current information. Other features include thermal shutdown, frequency synchronisation, intermittent mode current limit and adjustable line undervoltage lockout.


LM5117PMHE Specifications:

Output Type: Transistor Driver

Function: Buck

Output Configuration: Positive

Topology: Buck

Number of Outputs: 1

Output Stage: 1

Voltage - Supply (Vcc/Vdd): 5.5V ~ 65V

Frequency - Switching: 200kHz, 480kHz

Synchronous Rectifier: Yes

Clock Synchronisation: No

Control Characteristics: Frequency Control, Ramping, Soft Start

Operating Temperature: - 40°C ~ 125°C (T) 40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

Package/Case: 20-PowerTSSOP (0.173", 4.40mm wide)

Supplier Device Package: 20-HTSSOP


LM5117PMHE Applications:

Automotive Infotainment

Industrial DC-DC Motor Drivers

Automotive USB Power Supplies

Telecom Servers
