Trade Name:Switch controller
Brand:ADI
Particular Year:25+
Package:PQFN-28
Delivery Date:New and original
Stock: 3000pcs

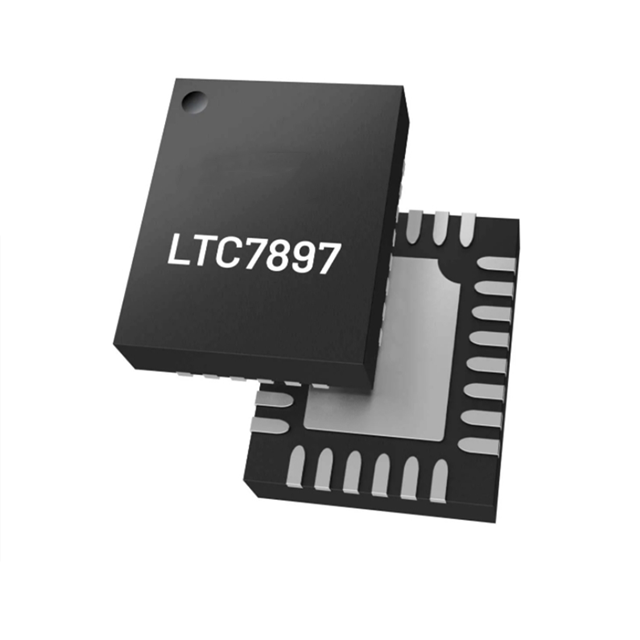

LTC7897RUFD: 140V, low IQ, synchronous step-down type controller, with programmable 5V to 10V gate drive
1. Overview
The LTC7897RUFD is a high-performance, 100% duty cycle, synchronous step-down DC/DC switching regulator controller that can drive all power levels of N-channel synchronous silicon metal oxide field-effect transistors (MOSFETs). Synchronous rectification can enhance efficiency, reduce power loss and simplify application design by lowering thermal requirements.
2. Technical Specifications
The main specifications of LTC7897RUFD include:
Output type: Transistor driver
Function: Lower blood pressure
Output configuration: Positive
Topology: Voltage reduction
Output number: 1
Output stage: 1
Voltage - Power Supply (Vcc/Vdd) : 4V to 135V
Frequency - Switch: 100kHz to 2.5MHz
Duty cycle (maximum) : 100%
Synchronous rectifier: Yes
Clock synchronization: Yes
Serial interface: -
Control features: Current limiting, no-load time control, frequency control, phase control, good power supply, soft start, tracking
Operating temperature: -40°C to 150°C (TJ)
Installation type: Surface mount type
Package/Shell: 28-QFN
3. Application fields
LTC7897RUFD is widely used in the following fields:
Industrial power system
Military/avionics
Telecommunication power supply system
