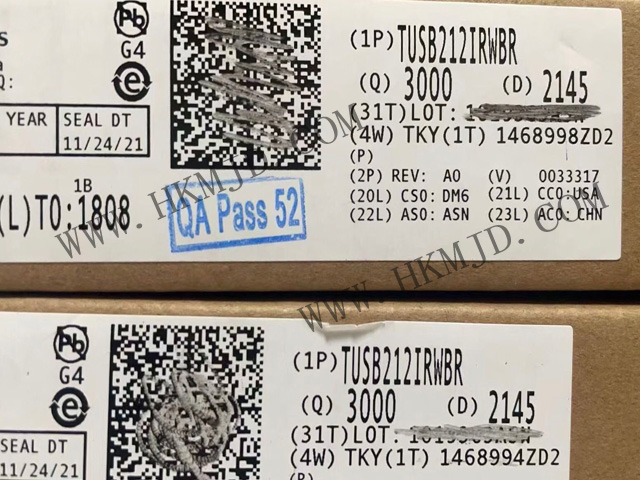

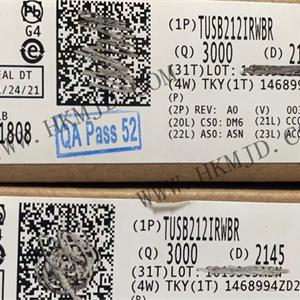

For picture reference, please see the specifications
< >

Commodity Model:TUSB212IRWBR

Trade Name:USB Interface Integrated Circuit

Brand:TI

Particular Year:21+

Package:X2QFN-12

Delivery Date:New and Original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
TUSB212IRWBR
Package
X2QFN-12
Describe
USB 2.0 high-speed signal regulator with DC boost function

Product Description

TUSB212IRWBR is a USB high-speed (HS) signal conditioner designed specifically to compensate for ISI signal loss in transmission channels.


The TUSB212IRWBR features a patent-pending design that is insensitive to USB Low-Speed (LS) and Full-Speed (FS) signals. LS and FS signal characteristics are unaffected by the TUSB212IRWBR, but the device compensates for HS signals.


With programmable signal AC boost and DC boost, the device's performance can be fine-tuned to optimise high-speed signals on the connector. This helps ensure compliance with USB high-speed electrical testing standards.


Additionally, the TUSB212IRWBR is compliant with USB On-The-Go (OTG) and Battery Charging (BC) protocols.


TUSB212IRWBR Features

• Compatible with USB 2.0, OTG 2.0, and BC 1.2

• Pin-mapped or configurable via I2C

• Supports LS, FS, and HS signal transmission

• Ultra-low USB disconnect and shutdown power consumption

• Optional signal gain via daisy-chain devices in high-loss applications

• D1P/M and D2P/M are interchangeable and host/device agnostic

• Supports up to 5 metres of upstream or 2 metres of downstream cable length

– Four selectable AC boost settings via external pull-down resistors

– DC boost and AC boost for optimal signal integrity


TUSB212IRWBR Applications

• Laptops

• Desktops

• Docking stations

• Tablets

• Mobile phones

• Active cables, cable extenders

• Backplanes

• Televisions

Associated Products

Model

Brand

Package

Quantity

Describe

CYPD5125-40LQXIT

Cypress

QFN-40

7000

USB Type-C Port Controller

MAX16972AGEB

Maxim

16-QSOP

2000

3A, automotive-grade, high-speed USB protector

CYPD7272-68LQXQ

Cypress

VQFN-68

3000

EZ-PD™ CCG7DC Dual-Port USB-C Power Delivery and DC-DC Controller, VQFN-68

TPS65994ADYBGR

TI

DSBGA-50

30000

Dual-Port USB-C® Power Delivery Controller with Integrated Power Switches

MAX20463GTCB

Maxim

TDFN-12

3000

USB Type-A to Type-C Port Converter for Automotive Applications, TDFN-12

MAX20463AGTCB

Maxim

TDFN-12

3000

USB Type-A to Type-C Port Converter for Automotive Applications, TDFN-12

MAX3301EETJ

Maxim

TQFN-32

3000

USB On-the-Go Transceiver with Charge Pump, TQFN-32

MAX20046AGTC

Maxim

TQFN-12

3000

Automotive Grade Hi-Speed USB 2.0 Protector, TQFN-12

MAX16972GTEA

Maxim

TQFN-16

3000

USB Dedicated Charging Port (DCP) - Automotive Hi-Speed USB Protector

MAX16972GEEB

Maxim

QSOP-16

3000

3A, Automotive Grade, High Speed USB Protector, QSOP-16
