Service Telephone:86-755-83294757

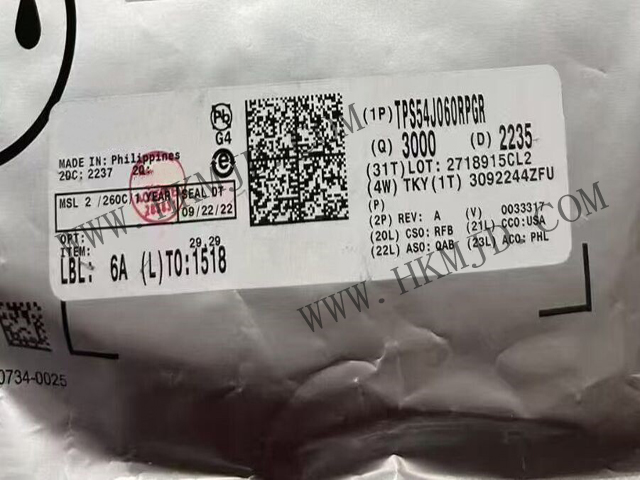

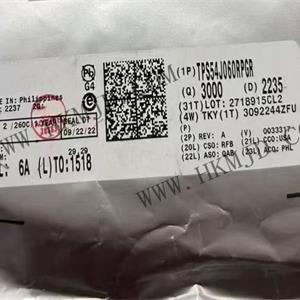

Trade Name:Synchronous Buck Converters
Brand:TI
Particular Year:24+
Package:VQFN-14
Delivery Date:New and Original
Stock: 18000pcs
The TPS54J060RPGR device is a high efficiency, small footprint synchronous buck converter with adaptive on-time D-CAP3 ™ control mode. The device's simplicity and low external component count make it ideal for space-constrained power systems.
Features
- External bias range of 3.3V to 3.6V over an input range of 2.7V to 16V
- No external bias in the 4V to 16V input range
- Integrated MOSFET supports 6A continuous output current
- Fast load step response in D-CAP3™ control mode
- Supports all ceramic output capacitors
- 900mV reference voltage with ±1% tolerance (over junction temperature range of -40°C to +125°C)
- Output voltage range: 0.9V to 5.5V
- Autojump Eco-mode™ for high light-load efficiency
- Programmable current limit (using external resistors)
- Selectable frequency settings (600kHz, 1100kHz, 2200kHz)
- Internally fixed, externally adjustable soft start
- Safe pre-bias start function
- Built-in circuitry allows slow output discharge
- Open-drain power normal state output
- Lockout mode in the event of OC, UV and OV faults
- Fully RoHS compliant
- 2mm × 3mm 14-pin Hotrod™ package with 0.5mm pitch
Applications
- Server and cloud computing POLs
- Broadband, networking and optical modules
- Wireless infrastructure
- Industrial PCs
- IP Webcam
Simplified Schematic
