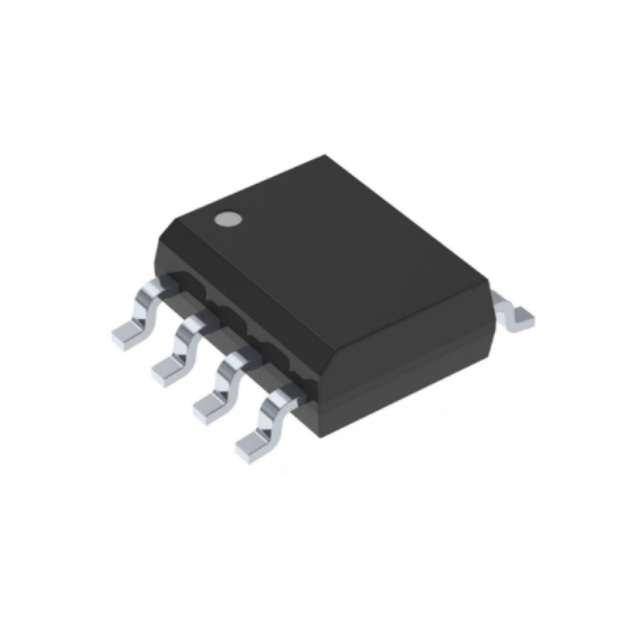

The ADUM1254ASA provides two bi-directional open-drain channels for applications such as I2C that require bi-directional data transfer on the same line. To prevent latch-up, the first output includes a special buffer that regulates the logic-low voltage to 0.64 V, with the input logic-low threshold at least 50 mV lower than the output logic-low voltage, and the second side uses a conventional buffer that does not regulate the logic-low output voltage.

Features

Low VOL(MAX) for greater I2C device compatibility

Side 1: 0.69V

Side 2: 0.4V

Independent VDD1/VDD2 support 3.3V and 5V logic voltage levels and allow level shifting

2.25V to 5.5V on both sides

Enhanced Hot Swap Side 2 I/O

Initial Side 2 connections occur when the bus is idle or stopped to prevent data corruption

Applications

Isolated I2C/SMBus interface

Battery management system

Power over Ethernet (PoE)

Motor control systems
